KC3225Z4.00000C1KX00

Oscillators Overview

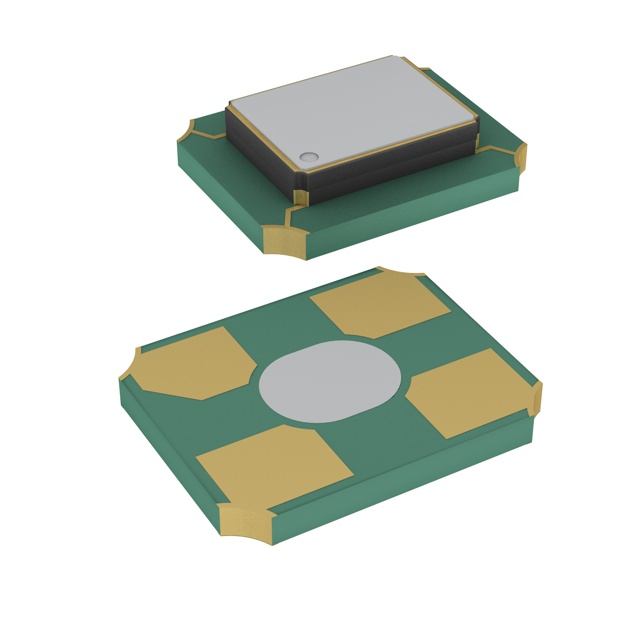

The KC3225Z4.00000C1KX00 is a standard clock oscillator manufactured by KYOCERA AVX, designed for surface-mount applications. It operates at a frequency of 4 MHz with a stability of ±20 ppm and utilizes a CMOS output format. The device supports a supply voltage range of 1.71 V to 3.63 V and features a compact 3.2 mm x 2.5 mm x 0.8 mm package. It includes standby functionality and meets AEC-Q200 qualification standards.

Oscillators Feature Summary

• Supports standby (power down) function for energy efficiency
• CMOS output format compatible with digital logic circuits
• Qualified for automotive applications under AEC-Q200 standards

Oscillators Applications

• Automotive electronic systems requiring precise timing
• Consumer electronics utilizing low-power oscillators
• Industrial control systems needing stable clock signals

Oscillators Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact electrical parameters and packaging options. Ensure compatibility with target operating temperatures and supply voltages before integration. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Oscillators Selection Notes

Select this component when a 4 MHz CMOS oscillator with automotive qualification is required. Consider the 3.2x2.5mm footprint for space-constrained designs. Evaluate power consumption requirements against the standby current specifications if low-power operation is critical.

Oscillators Part Context

This part belongs to the KC3225Z series of standard clock oscillators from KYOCERA AVX. The series offers various frequencies ranging from 0.5 MHz to 170 MHz in a small SMD package. It is designed for high-reliability applications across consumer, industrial, and automotive sectors.

Oscillators Replacement Considerations

Direct substitutes within the same series include KC3225Z4.91520C1KX00 and KC3225Z60.0000C1KX00, though frequency differences apply. Verify pinout and electrical characteristics before swapping with other manufacturers' offerings.
