KC5032Z14.7456C15XXK

Oscillators Overview

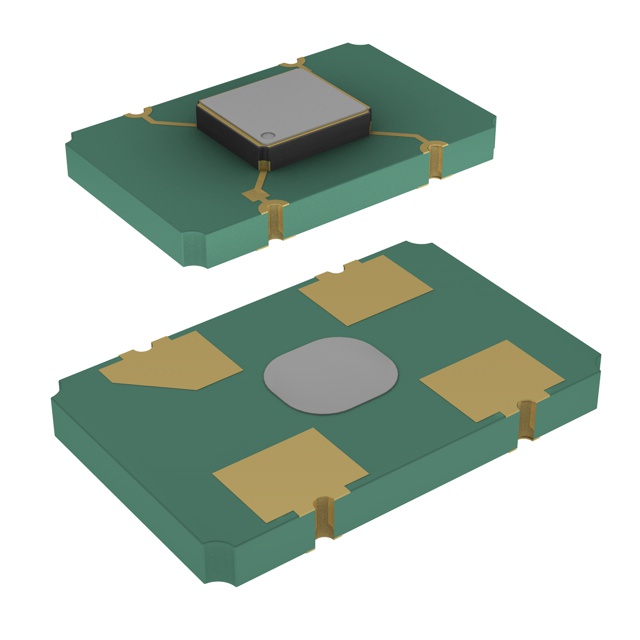

The KC5032Z14.7456C15XXK is a standard clock oscillator manufactured by KYOCERA AVX, operating at a frequency of 14.7456 MHz. It features CMOS output format and operates within a supply voltage range of 1.8 V to 3.3 V. The device exhibits a frequency stability of ±30 ppm and utilizes a load capacitance of 15 pF. Encased in a 5 mm x 3.2 mm SMD package with a height of 1.2 mm, it supports an industrial temperature range from -40°C to +85°C. The component includes standby functionality for power management.

Oscillators Feature Summary

• CMOS output signal generation
• Standby (Power Down) capability
• Surface-mount construction

Oscillators Applications

• General-purpose digital timing circuits
• Microprocessor clock sources
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required voltage levels and tolerance specifications. Confirm that the selected variant matches the intended operational temperature range and package dimensions for the target PCB layout. Cross-reference the part number with official distributor catalogs to validate authenticity and current production status before procurement.

Oscillators Selection Notes

Select this component when a precise 14.7456 MHz reference is required for CMOS-compatible logic interfaces. Consider the ±30 ppm stability specification relative to system timing requirements. Evaluate the 1.8V to 3.3V operating range against available power rails. Ensure the 5x3.2mm footprint aligns with existing board space constraints and thermal dissipation needs.

Oscillators Part Context

This oscillator belongs to the KC5032Z series, designed for compact electronic applications requiring reliable timing signals. The Z-series typically denotes specific performance characteristics regarding phase noise and stability suitable for general digital systems. It complements KYOCERA AVX's broader portfolio of crystal devices and resonators used in consumer and industrial electronics.

Oscillators Replacement Considerations

KC5032Z14.7456C1HX00
