KC7050Z33.3333C15XXK

Oscillators Overview

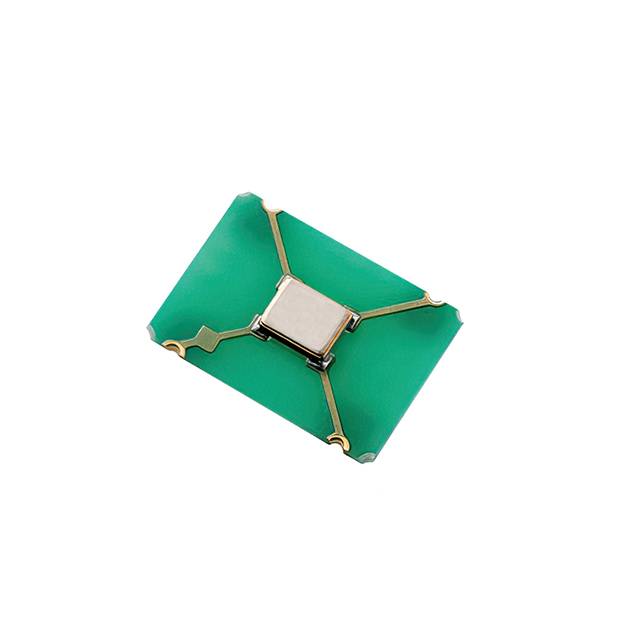

The KC7050Z33.3333C15XXK is a standard clock oscillator manufactured by KYOCERA AVX, designed for surface-mount applications. It operates at a frequency of 33.3333 MHz with a CMOS output format and a load capacitance of 15 pF. The device supports supply voltages of 1.8V, 2.5V, and 3.3V, featuring a standby (power down) function. Encased in a 4-SMD, No Lead package measuring 7.00mm x 5.00mm, it ensures reliable performance across industrial temperature ranges.

Oscillators Feature Summary

• Integrated standby mode for power management
• CMOS output signal compatibility
• Surface-mount construction for automated assembly

Oscillators Applications

• Industrial control systems
• Communication equipment
• Computing hardware

Oscillators Procurement Notes

Verify the specific voltage rating and package dimensions against the official datasheet to ensure compatibility with target circuit designs. Confirm RoHS compliance status prior to procurement. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Ensure the selected variant matches the required operating temperature range for the intended application environment.

Oscillators Selection Notes

Select this component when a 33.3333 MHz CMOS clock source is required for SMD integration. Consider the 1.8V, 2.5V, or 3.3V supply options based on system power architecture. Evaluate the 7.00mm x 5.00mm footprint against available PCB space. Verify that the CMOS output logic levels align with downstream digital inputs without additional buffering requirements.

Oscillators Part Context

This model belongs to the KC7050 series of standard oscillators from KYOCERA AVX. The series provides various frequency and package options for general-purpose timing needs. The Z suffix typically denotes specific package or performance characteristics within the lineup. This component serves as a fundamental timing reference for digital circuits requiring precise clock synchronization.

Oscillators Replacement Considerations

Check for direct substitutes within the KC7050 family offering identical frequencies and packages. Verify pinout compatibility before substituting with other manufacturers' oscillators. Ensure replacement parts meet the same electrical specifications and environmental ratings.
