KD-F-24.000M-7-1020-4085-80

Crystals Overview

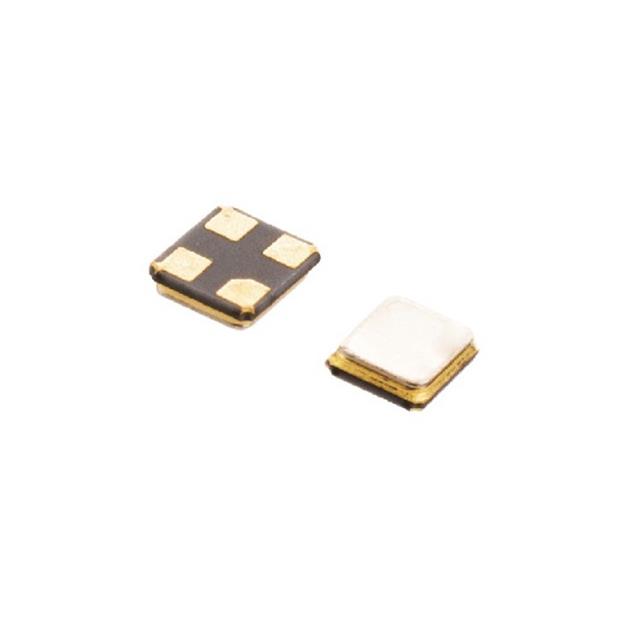

The KD-F-24.000M-7-1020-4085-80 is a quartz crystal resonator manufactured by CEC Xtal, operating at a fundamental frequency of 24 MHz. It features a load capacitance of 7 pF and a frequency tolerance of ±10 ppm. The device is designed for surface-mount application in a 4-SMD, no-lead package configuration. It supports an extended industrial operating temperature range from -40°C to +85°C. This component serves as a precise timing reference for electronic circuits requiring stable frequency generation within specified thermal constraints.

Crystals Feature Summary

• Provides stable 24 MHz frequency output with high precision
• Designed for compact surface-mount integration
• Operates reliably across wide industrial temperature variations

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific load capacitance requirement against your circuit design to ensure accurate frequency performance. Confirm that the selected package type matches your PCB footprint and assembly capabilities. Check the manufacturer's latest documentation for any updates regarding material compliance or manufacturing changes before finalizing procurement plans.

Crystals Selection Notes

Select this component when a 24 MHz reference is required with tight tolerance specifications. Ensure the system environment falls within the stated temperature range. Consider the physical dimensions and mounting style compatibility with existing board layouts during the initial design phase.

Crystals Part Context

This part belongs to the standard crystal resonator category from CEC Xtal, a manufacturer specializing in quartz-based timing devices. These components are essential for establishing clock signals in various digital electronics. The product line focuses on providing reliable frequency control solutions for consumer and industrial applications.

Crystals Replacement Considerations

Direct substitutes must match the 24 MHz frequency, 7 pF load capacitance, and ±10 ppm tolerance. Verify package compatibility and temperature range requirements when evaluating alternative suppliers or equivalent parts from other manufacturers.
