KMZ1608RHR600ATD25

Chip Ferrite Bead Overview

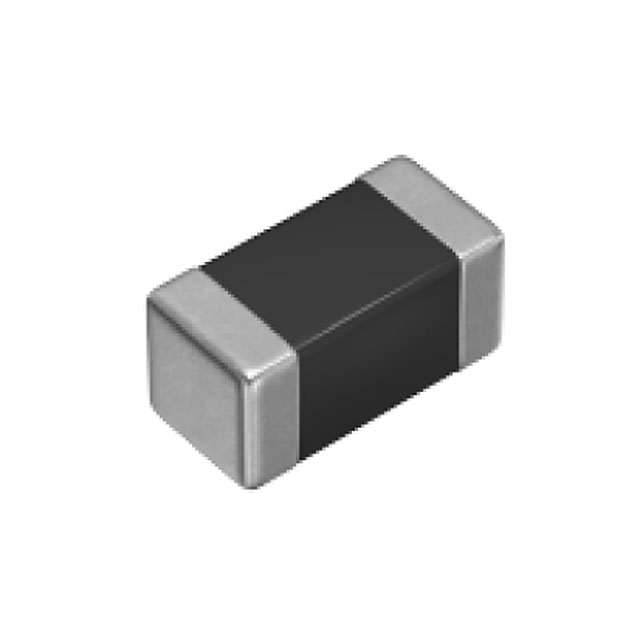

The KMZ1608RHR600ATD25 is a single-line ferrite chip bead from the TDK KMZ-HR series, designed for surface-mount applications in the 0603 (1608 metric) package. It exhibits an impedance of 60 Ohms at 100 MHz with a maximum DC resistance of 100 mOhms and a tolerance of 25%. The component supports a maximum DC current of 800 mA and operates within a temperature range of -55°C to +150°C. It features flexible soft terminals and holds AEC-Q200 qualification for automotive reliability.

Chip Ferrite Bead Feature Summary

• AEC-Q200 qualified for automotive electronic component standards
• Flexible soft terminal construction to reduce mechanical stress
• High-temperature operation capability up to +150°C

Chip Ferrite Bead Applications

• Automotive electronics circuits requiring EMI suppression
• Signal line noise filtering in compact devices
• Power line filtering in space-constrained SMT designs

Chip Ferrite Bead Procurement Notes

Verify the specific suffix TD25 against official TDK documentation to confirm reel specifications and packaging details. Ensure the ordered part matches the exact impedance and current ratings required for the target circuit design. Cross-reference the manufacturer part number with authorized distributor lists to confirm authenticity and traceability before purchase.

Chip Ferrite Bead Selection Notes

Select this component when a 0603 footprint is required with high current handling capabilities up to 800 mA. The low DC resistance minimizes power loss in signal paths. Consider the AEC-Q200 certification if the application involves automotive environments. Verify that the 60 Ohm impedance at 100 MHz aligns with the specific frequency spectrum of the noise to be suppressed.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the KMZ-HR series, which emphasizes high reliability and thermal stability. The 1608 metric case size allows for dense PCB layouts. The product is manufactured by TDK Corporation, a recognized provider of passive components for industrial and automotive sectors.

Chip Ferrite Bead Replacement Considerations

Consult TDK datasheets for direct equivalents within the KMZ-HR series. Verify that any substitute maintains the 0603 footprint, 800 mA current rating, and AEC-Q200 qualification. Check impedance curves to ensure compatibility with the target noise frequencies.
