Product Detailed Parameters
- Description：FILTER LC 33PF 200MHZ SMD
- Series：KNF, Kyocera
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：-
- Technology：LC
- Number of Channels：-
- Center / Cutoff Frequency：200MHz (Cutoff)
- Attenuation Value：20dB @ 600MHz ~ 1.1GHz
- Resistance - Channel (Ohms)：-
- Values：C = 33pF
- ESD Protection：No
- Operating Temperature：-25°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：25V
- Mounting Type：Surface Mount
- Package / Case：1206 (3216 Metric), 3 PC Pad
- Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height：0.039" (1.00mm)
- Current：200 mA
- Grade：-
- Qualification：-
Download product information
Overview

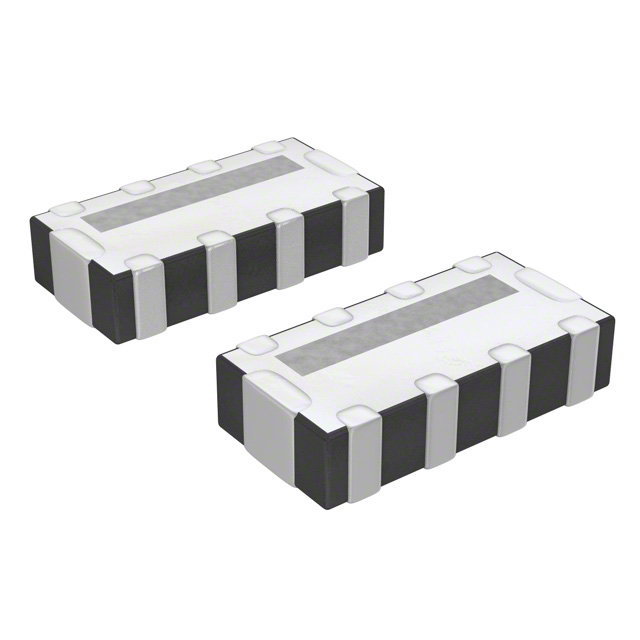

The KNF32200-W3 is an EMI noise filter manufactured by KYOCERA AVX, belonging to the KNF series. It utilizes LC filter technology and features a cutoff frequency of 200 MHz. The component includes a capacitance value of 33 pF and has a rated voltage of 25V. It is designed for surface mount installation with an operating temperature range spanning from -25°C to 85°C.
Feature Summary
- Employs LC network topology for effective electromagnetic interference suppression
- Provides low-pass filtering characteristics with a defined cutoff frequency
- Engineered specifically for data line protection in mobile device applications
Applications
- Data lines for mobile devices
- EMI noise filtering in electronic circuits
- Electromagnetic interference suppression systems
Procurement Notes
Verify the current production status as sources indicate this part may be obsolete. Confirm technical specifications against official datasheets before integration. Ensure compatibility with existing circuit designs regarding voltage ratings and temperature ranges. Check for authorized distribution channels to guarantee component authenticity and traceability.
Selection Notes
Select this component when designing circuits requiring specific EMI suppression for mobile device data lines. Consider the 200 MHz cutoff frequency and 33 pF capacitance for appropriate signal integrity. Evaluate the -25°C to 85°C operating range against environmental requirements. Verify package compatibility and mounting constraints during the design phase.
Part Context
This component is part of the KNF series produced by KYOCERA AVX, focusing on EMI/RFI filters. It represents a specialized solution for managing electromagnetic noise in compact electronic assemblies. The product falls under the broader category of passive components used for signal conditioning and interference mitigation in consumer electronics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to potential obsolescence status, alternative components must be identified through comprehensive cross-reference tools or direct manufacturer consultation to ensure functional equivalence.
