KNH10C224DA20TS

Overview

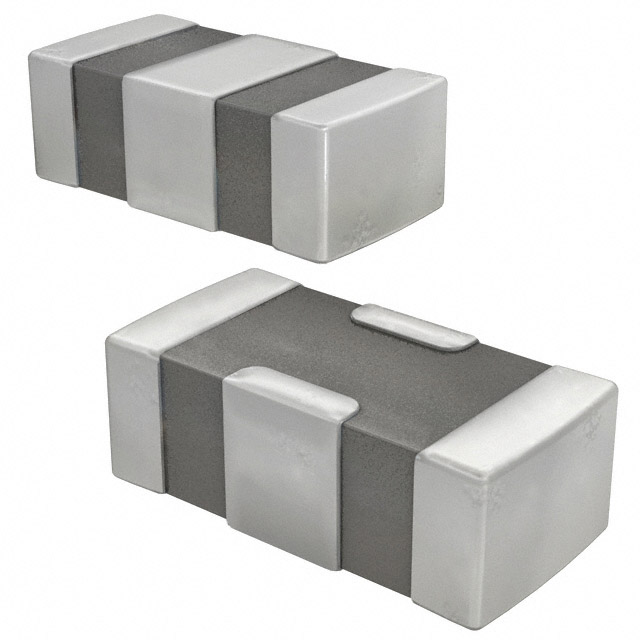

The KNH10C224DA20TS is a three-terminal LC EMI filter manufactured by KYOCERA AVX. It features a low-pass channel C with a capacitance of 0.22 µF. The component utilizes a surface-mount design with specific physical dimensions: width of 0.5 mm, height of 0.35 mm, and a ground terminal width of 0.3 mm. It operates within a minimum temperature range of -40°C. The device is classified as lead-free and RoHS compliant.

Feature Summary

• Three-terminal architecture for enhanced high-frequency noise suppression
• Low-pass filtering configuration utilizing integrated capacitance
• Compact surface-mount form factor designed for space-constrained PCB layouts

Applications

• Electromagnetic interference filtering in electronic circuits
• Signal integrity protection in high-speed data lines
• Noise reduction in consumer and industrial electronic devices

Procurement Notes

Verify current manufacturing status as sources indicate this product may no longer be manufactured. Confirm RoHS compliance and lead-free status through official documentation before procurement. Ensure the specified capacitance and physical dimensions meet the target circuit requirements. Check for availability of equivalent replacement components if discontinuation is confirmed.

Selection Notes

Select this component when a compact, three-terminal LC filter is required for EMI suppression. The 0.22 µF capacitance value defines its filtering characteristics. Consider the 0.5 mm width and 0.35 mm height for board space constraints. Verify thermal performance against the -40°C minimum operating temperature limit for the intended application environment.

Part Context

This part belongs to the KYOCERA AVX EMI/RFI filters category, specifically LC filter capacitors. KYOCERA AVX Components Corporation specializes in advanced electronic components including capacitors, connectors, and crystal devices. This filter represents their solution for managing electromagnetic interference in modern electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. If this component is discontinued, consult official distributor channels or manufacturer support for recommended alternatives that match the electrical specifications and footprint.

FAQ

What is the primary function of the KNH10C224DA20TS?

It functions as an LC EMI filter with a low-pass channel C and 0.22 µF capacitance to suppress electromagnetic interference.

What are the physical dimensions of this filter?

The component has a width of 0.5 mm, a height of 0.35 mm, and a ground terminal width of 0.3 mm.
