KNH10C474DA20TS

Overview

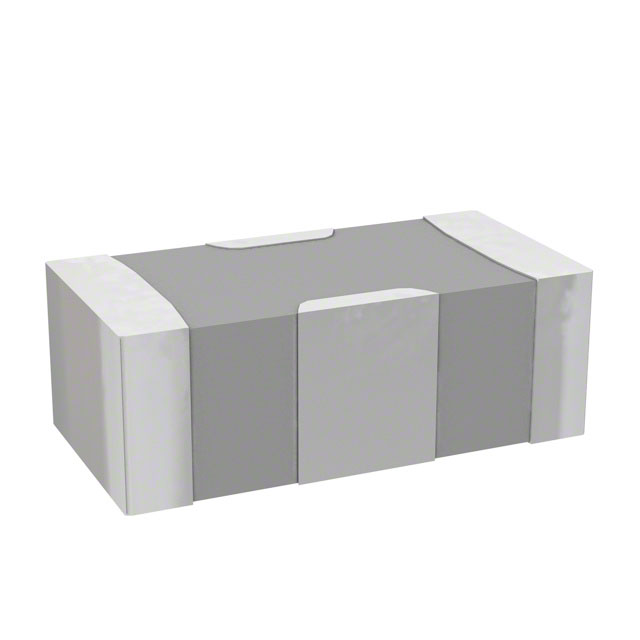

The KNH10C474DA20TS is a surface-mount LC filter from the KYOCERA AVX KNH series. It features an inductor-capacitor topology with a channel resistance of undefined value and a capacitance of 0.47 µF. The component measures 1.00 mm in length, 0.50 mm in width, and has a height of 0.50 mm (0.039" L x 0.020" W). This miniature passive device is designed for high-density circuit board integration.

Feature Summary

• Integrates LC filtering within a compact SMD footprint
• Utilizes solid manganese dioxide technology for stability
• Designed for space-constrained electronic assemblies

Applications

• Signal conditioning in mobile devices
• Noise suppression in consumer electronics
• EMI mitigation in compact industrial modules

Procurement Notes

Verify current manufacturing status as the KNH10C474DA20TS is listed as no longer manufactured. Confirm availability through authorized distributors or secondary markets. Ensure compatibility with existing design specifications before procurement to avoid obsolescence risks.

Selection Notes

Select this component for applications requiring small form factor LC filtering. Evaluate the 0.47 µF capacitance against circuit requirements. Consider the 1.00 mm x 0.50 mm dimensions for PCB layout constraints. Verify electrical performance matches system noise profiles.

Part Context

KYOCERA AVX Components Corporation manufactures this part under the KNH series. The company specializes in capacitors, circuit protection, and connectors. This specific model represents their surface-mount passive component offerings for modern electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official KYOCERA AVX resources for equivalent components.
