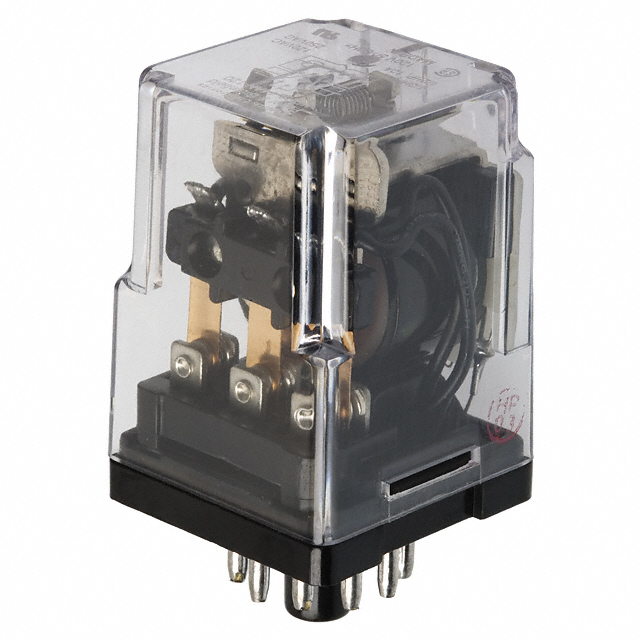

KRPA-14DG-6

KRPA-14DG-6 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE 3PDT 10A 6V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for KRPA-14DG-6

• Description：RELAY GEN PURPOSE 3PDT 10A 6V
• Series：KRPA
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：6VDC
• Contact Form：3PDT (3 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：240VAC - Max
• Load - Max Switching：2400VA
• Coil Current：188 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In, 11 Pin (Octal)
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：4.5 VDC
• Must Release Voltage：-
• Operating Temperature：-45°C ~ 70°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：-
• Release Time：-

Power Relays, Over 2 Amps datasheet and documents for KRPA-14DG-6
