KRTBDWLM31.32-T4U6-JW+AAAB-J3+R4S6-5V-S

LED Indication - Discrete Overview

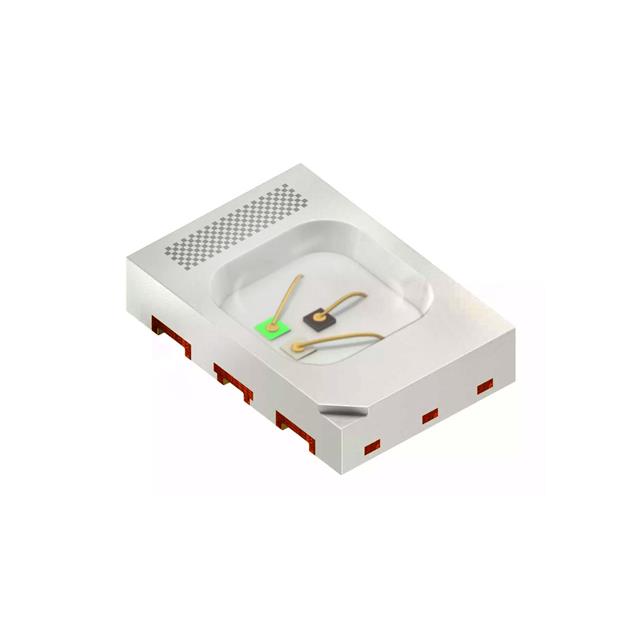

The KRTBDWLM31.32-T4U6-JW+AAAB-J3+R4S6-5V-S is an RGB LED component from the OSIRE E3323 series by ams OSRAM, designed for automotive ambient lighting applications. It features a compact 4-SMD, no-lead package with dimensions of 3.3 mm length, 2.3 mm width, and 0.7 mm height. The device emits Red (peak 640 nm), Green (peak 522 nm), and Blue (peak 463 nm) light. Typical forward voltages are 1.9 V for red, 2.55 V for green, and 2.85 V for blue at a test current of 10 mA. It holds AEC-Q102 qualification and operates within a temperature range of -40 °C to +110 °C.

LED Indication - Discrete Feature Summary

• Integrated RGB configuration in a compact surface-mount package suitable for tight assembly spaces.
• AEC-Q102 qualified for automotive reliability standards.
• Includes imprinted data matrix code providing individual optical measurement data at 10 mA and 50 mA.
• Clear lens design for efficient light transmission.

LED Indication - Discrete Applications

• Automotive interior ambient lighting
• Functional illumination in vehicle cabins
• Automotive aftermarket lighting solutions

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct binning and optical characteristics. Confirm package orientation and pinout definitions before PCB layout finalization. Check for RoHS3 compliance status if required by regional regulations. Ensure storage conditions account for moisture sensitivity levels specified in the manufacturing documentation.

LED Indication - Discrete Selection Notes

Select this component when space-constrained automotive ambient lighting requires integrated RGB functionality. The embedded data matrix code facilitates automated optical quality control during production. Consider the operating temperature range and thermal management requirements for high-density installations. Verify compatibility with existing driver circuits regarding forward voltage tolerances.

LED Indication - Discrete Part Context

This part belongs to the OSIRE E3323 family, which focuses on miniaturized multi-color LEDs for automotive use. The series emphasizes flexibility in assembly due to its small footprint. Similar parts in the lineup may vary in brightness bins or specific wavelength peaks but share the same core package and qualification standards.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other OSIRE E3323 variants such as KRTBDWLM31.32-2T1V-JW+5A8A-J3+2R1T-5V, provided optical binning matches application requirements. Cross-referencing datasheet parameters is essential for equivalent performance.

LED Indication - Discrete FAQ

What is the purpose of the data matrix code on the LED?

The code contains individual optical measurement data for each LED at 10 mA and 50 mA currents, reducing the need for separate optical testing by customers.

Is this component qualified for automotive use?

Yes, it is AEC-Q102 qualified, ensuring suitability for automotive ambient and functional lighting applications.
