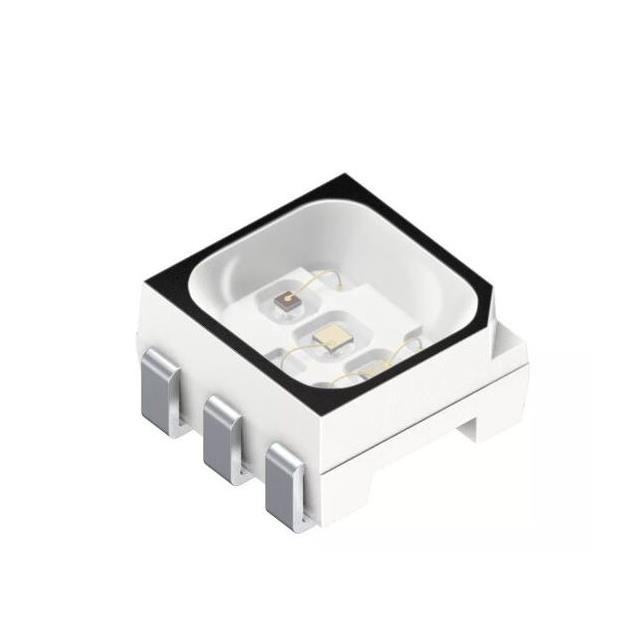

KRTBLSLPS1.32-VUVW-EQ+BTBV-LW-TWTY-L1-XX is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED RGB DIFFUSED 6PLCC SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for KRTBLSLPS1.32-VUVW-EQ+BTBV-LW-TWTY-L1-XX
- Description：LED RGB DIFFUSED 6PLCC SMD
- Series：DISPLIX® P3333
- Mfr：ams-OSRAM USA INC.
- Package：Tape & Reel (TR)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：991.5mcd Red, 2351mcd Green, 442mcd Blue
- Lens Style：Rectangle with Flat Top
- Lens Size：2.80mm x 2.60mm
- Voltage - Forward (Vf) (Typ)：2.05V Red, 2.65V Green, 2.85V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 532nm Green, 467nm Blue
- Wavelength - Peak：634nm Red, 526nm Green, 462nm Blue
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：6-PLCC
- Size / Dimension：3.30mm L x 3.10mm W
- Height (Max)：2.24mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for KRTBLSLPS1.32-VUVW-EQ+BTBV-LW-TWTY-L1-XX
LED Indication - Discrete Overview
The KRTBLSLPS1.32-VUVW-EQ+BTBV-LW-TWTY-L1-XX is an RGB LED from the DISPLIX P3333 series by ams OSRAM AG. It features a 6-SMD, J-Lead package with dimensions of 3.30mm x 3.10mm and a maximum height of 2.24mm. The component emits red light at 621nm (peak 634nm) with a typical forward voltage of 2.05V and intensity of 1025mcd. Green emission occurs at 532nm (peak 526nm), 2.65V Vf, and 2351mcd. Blue emission is at 467nm (peak 462nm), 2.85V Vf, and 457.5mcd. All channels are tested at 20mA. The lens is diffused with a 120° viewing angle.
LED Indication - Discrete Feature Summary
- Integrated RGB configuration enabling additive color mixing within a single compact surface-mount package.
LED Indication - Discrete Applications
- Full color RGB indicator applications
LED Indication - Discrete Procurement Notes
Verify component status as this part may be discontinued or subject to product change notifications. Confirm RoHS compliance and moisture sensitivity level (MSL 3) requirements for handling. Ensure ordering codes match exact suffix specifications for optical and electrical parameters.
LED Indication - Discrete Selection Notes
Select this component for applications requiring independent control of red, green, and blue stimuli in a small form factor. Consider the specific luminous intensity differences between channels when designing drive circuits. Verify thermal management capabilities given the SMD package constraints.
LED Indication - Discrete Part Context
This device belongs to the DISPLIX P3333 series, designed for full-color RGB applications. The 6-lead technology facilitates precise color mixing. It is manufactured by ams OSRAM AG, a leader in light and sensor solutions, utilizing advanced semiconductor packaging techniques for discrete LED indication.
LED Indication - Discrete Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Check manufacturer PCNs for potential obsolescence or alternative series within the DISPLIX family.
