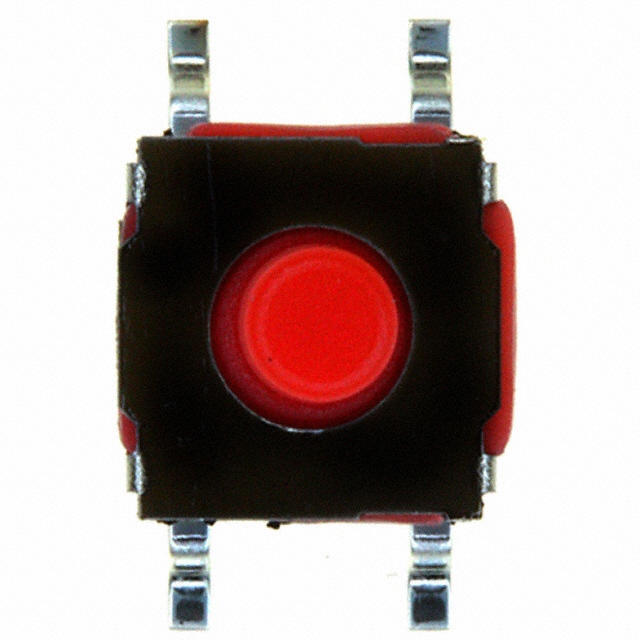

KSC4D1G 50SH LFS

KSC4D1G 50SH LFS is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 0.05A 32V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for KSC4D1G 50SH LFS

• Description：SWITCH TACTILE SPST-NO 0.05A 32V
• Series：KSC4D
• Mfr：C&K
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 32VDC
• Actuator Type：Standard
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：5.20mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：Gull Wing
• Outline：6.20mm x 6.20mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：200gf
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-40°C ~ 85°C

Tactile Switches datasheet and documents for KSC4D1G 50SH LFS
