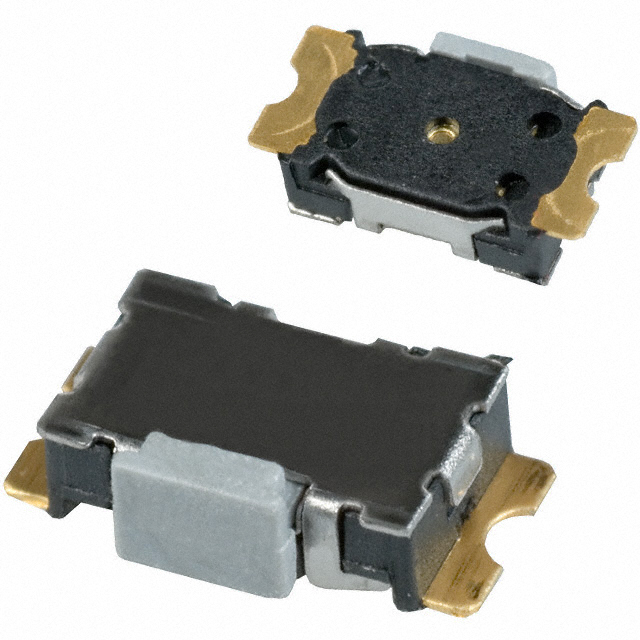

KSS343G LFG

KSS343G LFG is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 0.01A 50V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for KSS343G LFG

• Description：SWITCH TACTILE SPST-NO 0.01A 50V
• Series：KSS
• Mfr：C&K
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.01A @ 50VDC
• Actuator Type：Rectangular Button
• Mounting Type：Surface Mount, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：-
• Actuator Orientation：Side Actuated
• Termination Style：Gull Wing
• Outline：7.60mm x 3.70mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：400gf
• Ingress Protection：IP40
• Features：Tactile Feedback
• Operating Temperature：-40°C ~ 125°C

Tactile Switches datasheet and documents for KSS343G LFG
