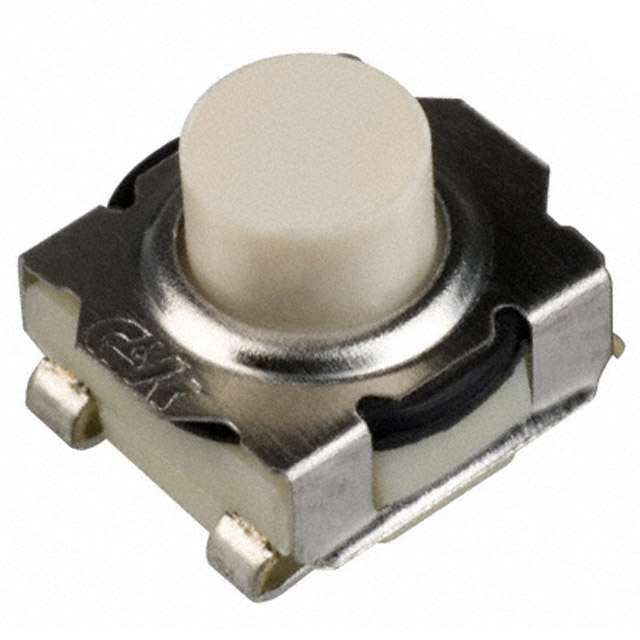

KT11P2JM

KT11P2JM is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 1VA 50V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for KT11P2JM

• Description：SWITCH TACTILE SPST-NO 1VA 50V
• Series：KT
• Mfr：C&K
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：1VA @ 50VAC/DC
• Actuator Type：Standard
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：5.36mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：J Lead
• Outline：6.38mm x 6.22mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：-
• Ingress Protection：IP57 - Dust Protected, Waterproof
• Features：Sealed
• Operating Temperature：-40°C ~ 90°C

Tactile Switches datasheet and documents for KT11P2JM
