KTD2052AEVAA-TR

Overview

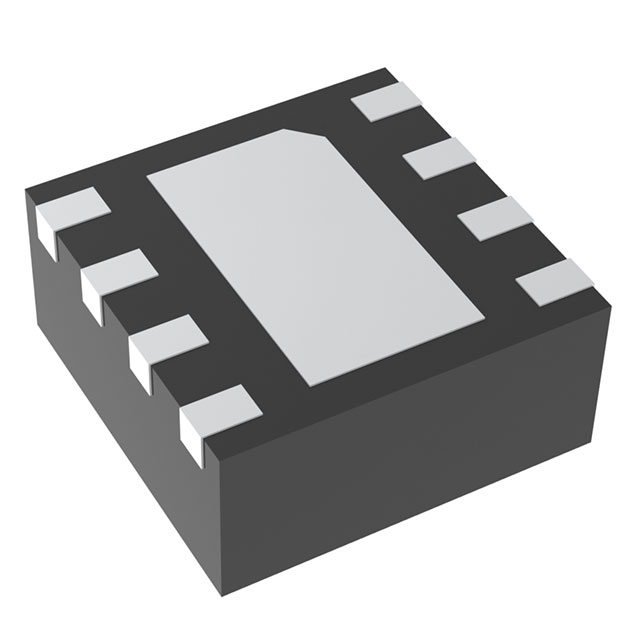

The KTD2052AEVAA-TR is a 12-channel RGB LED driver IC from Kinetic Technologies, designed for driving up to four RGB LEDs. It features an I2C control interface and operates within a supply voltage range of 2.5V to 5.5V. The device provides adjustable output currents up to 24mA per channel with high accuracy. It utilizes a multiplexed architecture requiring only four PCB traces to the LEDs, reducing pin count and board space. The component is housed in an 8-UDFN (2x2mm) package and supports a wide operating temperature range from -40°C to +85°C.

Feature Summary

• Multiplexed current driver outputs reduce required PCB traces to four
• Integrated flexible pattern generator with watchdog counter for autonomous execution
• Patented BrightExtend technology maintains color accuracy under low input voltage conditions
• Programmable CoolExtend feature prevents excessive heat generation during high load or temperature

Applications

• Battery-powered portable lighting devices
• Automotive interior ambient lighting systems
• High-color-accuracy display backlighting
• Complex RGB LED animation patterns via firmware

Procurement Notes

Verify the specific suffix 'A' in the part number to confirm initial power-up behavior. The KTD2052A variant defaults to disabled state upon reset, unlike B/D variants which execute AutoBreathe patterns. Ensure the I2C slave address matches system requirements, as this version uses 0x74. Confirm package compatibility with the 8-UDFN footprint before finalizing procurement orders.

Selection Notes

Select this component when minimizing PCB trace count is critical for compact designs. The integrated multiplexer eliminates the need for external switching components typically required for multi-channel RGB drivers. Consider the programmable fade engines if smooth color transitions are required without constant CPU intervention. Verify that the 24mA maximum current per channel meets the forward current requirements of the target LEDs.

Part Context

This part belongs to the KTD2052 family of fully programmable current regulators. It is distinct from other variants like KTD2052B, C, or D based on its default startup state and I2C address configuration. The family shares core technologies such as BrightExtend and CoolExtend but differs in initialization logic. It serves as a linear LED driver solution optimized for space-constrained applications requiring precise color control.

Replacement Considerations

Direct substitutes include other KTD2052 variants such as KTD2052BEVAA-TR or KTD2052CEVAA-TR, provided the different default startup behaviors and I2C addresses are accounted for in the design. Cross-referencing with similar 12-channel RGB drivers from other manufacturers requires verifying pinout compatibility and I2C protocol support.
