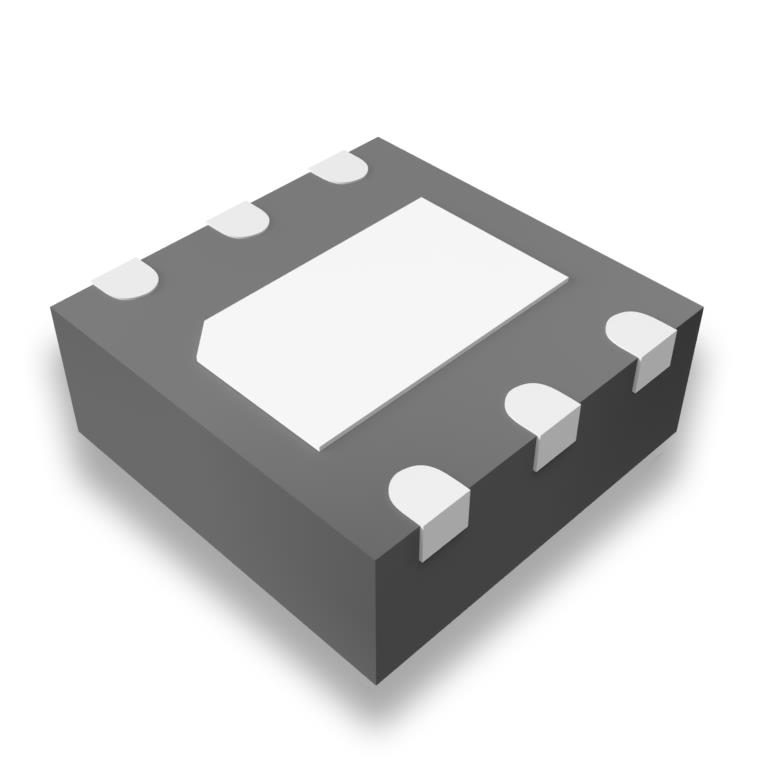

KTD2801ECD-TR

$0.93

Description：36V/30V/24V STEP-UP LED DRIVER W
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2cd7e5bca369 Category: LED Drivers IC Brand: Kinetic Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：36V/30V/24V STEP-UP LED DRIVER W
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
Type：DC DC Regulator
Topology：Step-Up (Boost)
Internal Switch(s)：Yes
Number of Outputs：1
Voltage - Supply (Min)：2.7V
Voltage - Supply (Max)：5.5V
Voltage - Output：0.2V ~ 36V
Current - Output / Channel：520mA
Frequency：1MHz
Dimming：PWM, Single-Wire
Applications：Backlight
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：6-WDFN Exposed Pad
Supplier Device Package：6-TDFN (2x2)
Grade：-
Qualification：-

Download product information

KTD2801ECD-TR

Overview

The KTD2801ECD-TR is a single-channel boost LED driver IC from Kinetic Technologies, designed for high-efficiency lighting applications. It operates within an input voltage range of 2.7 V to 5.5 V and delivers a constant output current of 20 mA. The device features a switching frequency of 1 MHz and supports a maximum output voltage of 36 V with internal overvoltage protection. It integrates a PWM dimming interface and ExpressWire control capability. Packaged in a TDFN22-6 (6-TDFN 2x2) format, it functions reliably between -40°C and +85°C.

Feature Summary

Integrates an internal diode and high-current switch for improved power conversion efficiency.
Supports PWM dimming and ExpressWire control interfaces for flexible system integration.
Includes built-in open LED protection to enhance circuit reliability.

Applications

LED backlighting systems
Portable electronic device illumination
General solid-state lighting modules

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact packaging and tape specifications. Ensure compatibility with the target PCB footprint for the TDFN22-6 package. Confirm that the required output voltage does not exceed the 36 V limit defined in the datasheet. Cross-reference thermal dissipation requirements with the application environment.

Selection Notes

Select this component when a compact, single-channel boost solution is required for low-power LED arrays. It is suitable for designs needing integrated protection features and digital control interfaces. Consider the 20 mA output current constraint and the 1 MHz switching frequency for filter component selection. Evaluate the TDFN22-6 package size against available board space constraints.

Part Context

This part belongs to the Kinetic Technologies LED driver family, focusing on efficient step-up conversion for portable electronics. It complements other drivers in the series by offering specific control interfaces like ExpressWire. The device addresses the need for small form factors in modern consumer electronics while maintaining robust protection mechanisms.
