KTD3116EAA-20-1-TR

$0.26

Description：2-CHANNEL LED DRIVER WITH BOOST
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR)

SKU:ba56a1e8515c Category: LED Drivers IC Brand: Kinetic Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：2-CHANNEL LED DRIVER WITH BOOST
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR)
Type：DC DC Regulator
Topology：Step-Up (Boost)
Internal Switch(s)：Yes
Number of Outputs：3
Voltage - Supply (Min)：2.7V
Voltage - Supply (Max)：5.5V
Voltage - Output：40V
Current - Output / Channel：20mA
Frequency：800kHz
Dimming：PWM
Applications：Backlight
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount

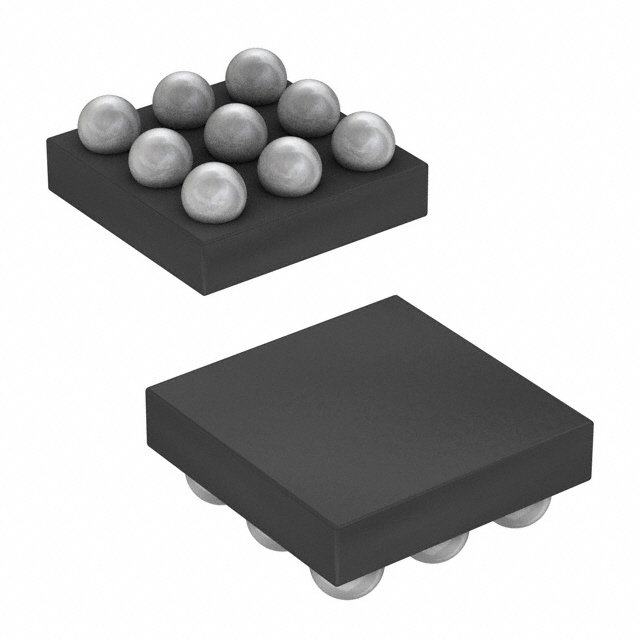

Package / Case：9-WFBGA, WLCSP
Supplier Device Package：9-WLCSP (1.2x1.2)
Grade：-
Qualification：-

Download product information

KTD3116EAA-20-1-TR

Overview

The KTD3116EAA-20-1-TR is a two-channel LED driver IC featuring an integrated boost converter and 31V overvoltage protection. It operates without ExpressWire control, utilizing EN and PWM signals for regulation. The device supports configurable current outputs ranging from 20mA to 150mA via external resistors, eliminating the need for microcontroller intervention.

Feature Summary

Integrated boost converter architecture for efficient LED driving
Configurable output current range managed by external resistors
Built-in 31V overvoltage protection for circuit safety
Direct EN and PWM control interface without proprietary bus requirements

Applications

LED lighting systems requiring independent channel control
Portable devices with space-constrained WLCSP-9 packaging
General illumination circuits needing simplified MCU-free operation

Procurement Notes

Verify the specific suffix '20-1' against official Kinetic Technologies documentation to confirm the exact electrical characteristics and pinout configuration. Ensure compatibility with the target PCB layout for the WLCSP-9 package. Cross-reference the manufacturer's latest datasheet to validate the absence of ExpressWire dependencies in the final design implementation.

Selection Notes

Select this component when a dual-channel solution with integrated power conversion is required. The fixed 31V OVP rating suits applications where voltage spikes must be contained within specific limits. Consider the external resistor configuration for current setting if precise calibration is needed without digital programming overhead.

Part Context

This part belongs to the Kinetic Technologies LED Lighting Driver ICs family. It shares architectural similarities with other models like the KTD3118EAA-25-TR but differs in overvoltage protection thresholds and control interfaces. The series focuses on compact, high-integration solutions for modern lighting applications.

Replacement Considerations

The KTD3116EFJ-20-TR is listed as a related variant within the same product line. Verify pinout compatibility and electrical specifications before substitution. No direct public substitute part numbers are confirmed for this specific model.
