KTD3122EAZ-TR

Overview

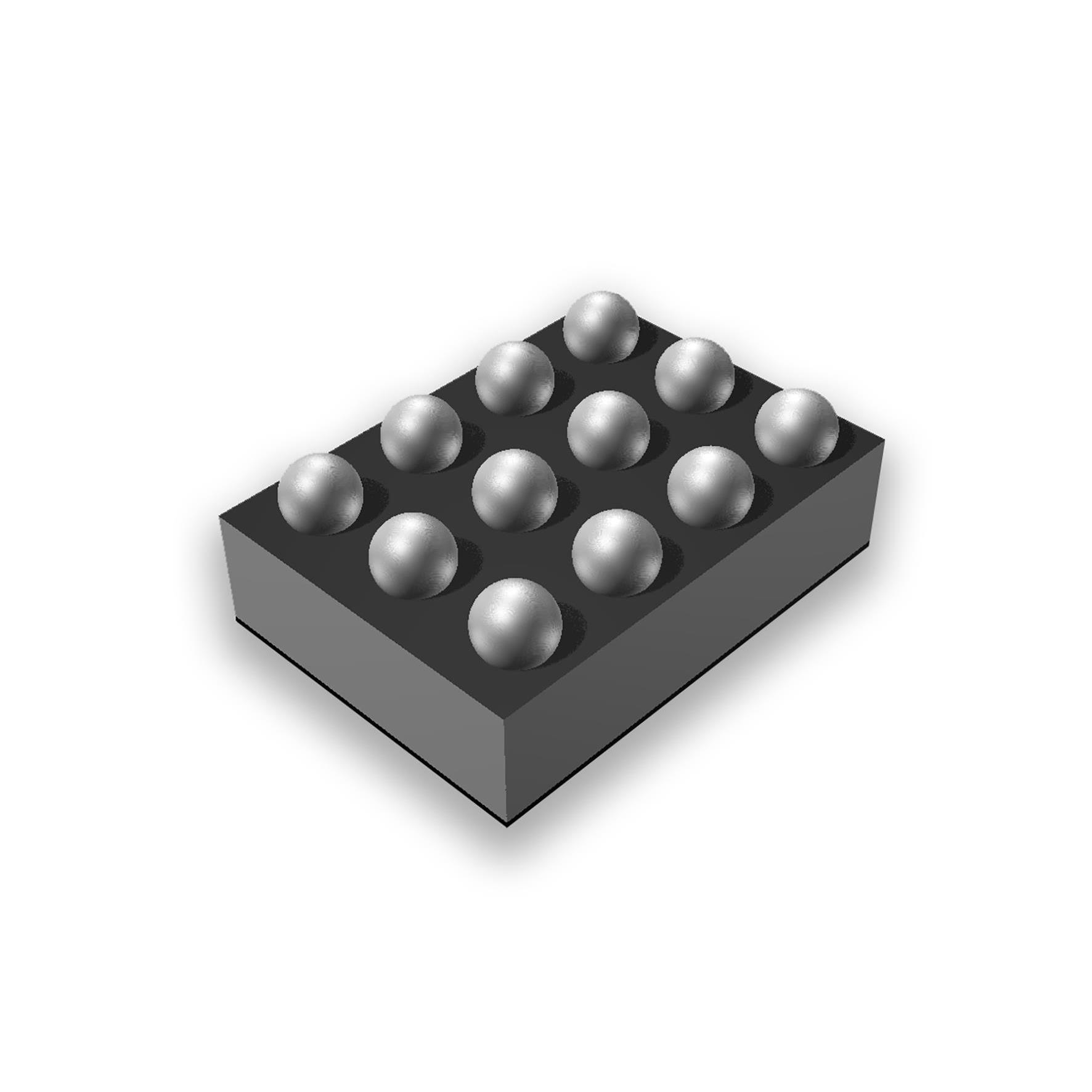

The KTD3122EAZ-TR is a high-efficiency step-up LED driver IC manufactured by Kinetic Technologies. It features two output channels with an integrated power diode, eliminating the need for external components. The device supports PWM and I2C control interfaces for precise brightness regulation. It includes a maximum overvoltage protection (OVP) rating of 30V to safeguard connected LEDs. The regulator current is configurable from 20mA to 150mA using external resistors, allowing flexibility without requiring a microcontroller. The component is housed in a compact 12-WLCSP package measuring 1.21x1.65mm.

Feature Summary

• Integrates a power diode within the step-up architecture to reduce external component count
• Supports dual control methods including PWM and I2C for flexible system integration
• Provides internal overvoltage protection rated at 30V maximum
• Enables programmable output current ranging from 20mA to 150mA via external resistors

Applications

• LED backlighting systems for medium-sized panels
• LCD bias power generation circuits
• General-purpose LED lighting driver configurations

Procurement Notes

This component has reached its end-of-life stage and is scheduled for obsolescence by the manufacturer. Availability is limited to existing stock or last-time buys. Verify specific ordering suffixes against official documentation to ensure correct package and temperature ratings. Cross-reference replacement part numbers carefully, as functional equivalents may differ in control protocols or voltage limits. Confirm final procurement details directly with authorized distributors before placing orders.

Selection Notes

Select this IC for applications requiring a compact, high-efficiency boost converter for LED strings. The integrated diode simplifies PCB layout compared to discrete solutions. Ensure the design accommodates the 30V OVP limit. The choice between PWM and I2C control depends on the host system's interface capabilities. External resistor selection determines the specific current range required for the target LED configuration.

Part Context

Kinetic Technologies specializes in LED driver ICs for various lighting and display applications. This model belongs to their step-up driver family, designed for efficiency and minimal external parts. Similar products in the lineup include multi-channel backlight drivers and RGB controllers, catering to different panel sizes and complexity requirements.

Replacement Considerations

The KTD2801ECD-TR is a confirmed substitute part number from the same manufacturer. Note that the replacement utilizes ExpressWire control instead of I2C/PWM and offers a higher 36V OVP rating. Verify compatibility with existing control logic before switching.
