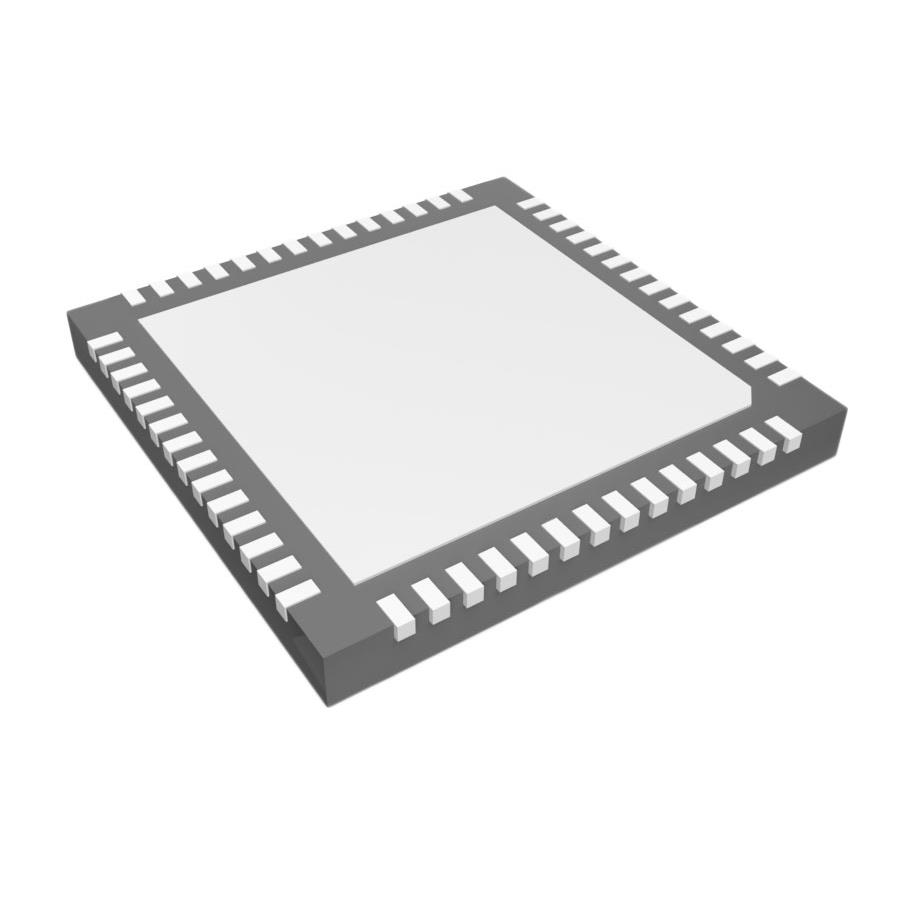

KTX9312GUAN-AA-TE

Description：3-PHASE BLDC MOTOR CONTROLLER FO
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1030840cb2e8 Category: Motor Drivers, Controllers Brand: Kinetic Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3-PHASE BLDC MOTOR CONTROLLER FO
Series：-
Mfr：Kinetic Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：Multiphase
Motor Type - AC, DC：Brushless DC (BLDC)
Function：Controller - Speed
Output Configuration：Half Bridge (3)
Interface：I2C
Technology：Power MOSFET, IGBT
Step Resolution：-
Applications：General Purpose
Current - Output：300mA
Voltage - Supply：3V ~ 5.5V
Voltage - Load：-
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Package / Case：56-WFQFN Exposed Pad
Supplier Device Package：56-WQFN77 (7x7)
Grade：-
Qualification：-

Download product information

KTX9312GUAN-AA-TE

Overview

The KTX9312GUAN-AA-TE is a three-phase brushless DC motor controller featuring a built-in vector engine and gate driver. It supports sensorless field-oriented control and direct torque control for 3-wire BLDC motors. The device integrates a 100V gate driver with output currents of 800 mA and 1.3 A. It utilizes an I2C interface and is housed in a 56-WQFN77 (7x7) package.

Feature Summary

Integrates a built-in vector engine controller for advanced motor management
Supports sensorless field-oriented control and direct torque control algorithms
Includes a built-in 100V gate driver for power stage interfacing

Applications

Three-wire BLDC motor control systems
Embedded motion control applications
Industrial motor drive solutions

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging options, such as tape and reel configurations. Confirm that the component meets RoHS standards for environmental compliance before integration into final assemblies.

Selection Notes

Select this component for applications requiring integrated sensorless control without external microcontrollers. Ensure the system voltage aligns with the 100V gate driver capability and that the WQFN package fits the PCB layout constraints.

Part Context

This part belongs to Kinetic Technologies' motor controller portfolio, designed for efficient brushless DC motor operation. It combines control logic with power driving capabilities to simplify system design for industrial and embedded motion applications.

Replacement Considerations

The KTX9302GUAM-AA-TE is a related model within the same family offering similar sensorless control features. Verify pinout and feature parity when considering substitutes.
