L06033R9BHLTR

Fixed Inductors Overview

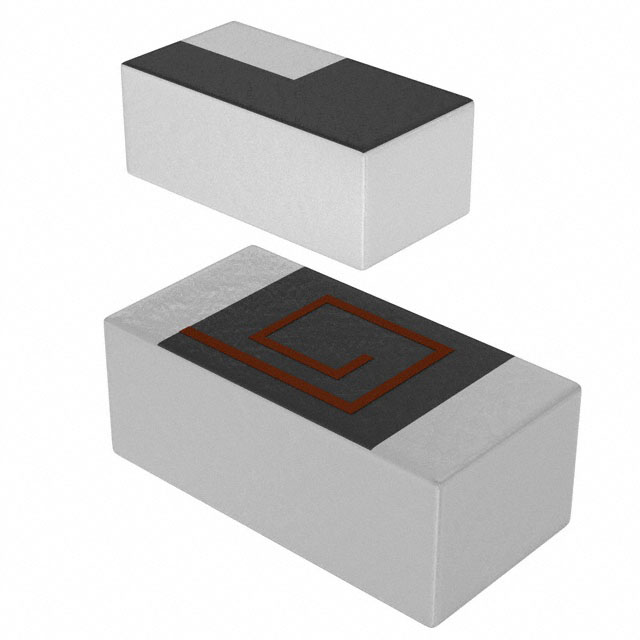

The L06033R9BHLTR is an unshielded thin film RF inductor from the Accu-L series, manufactured by KYOCERA AVX. It features a nominal inductance of 3.9 nH with a tolerance of ±0.1 nH. The component operates within a temperature range of -55°C to +125°C and supports a maximum DC current of 500 mA. Its maximum DC resistance is 120 mΩ, with a minimum Q factor of 25 at 450 MHz. The device utilizes a standard SMD/SMT termination and is housed in a compact 0603 (1608 metric) surface-mount package.

Fixed Inductors Feature Summary

• Thin film construction for stable RF performance
• Unshielded design suitable for general RF applications
• Accu-L series precision tolerance

Fixed Inductors Applications

• RF matching networks
• Impedance matching circuits
• High-frequency signal processing

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official datasheets to confirm exact tolerance and packaging specifications. Ensure compatibility with automated pick-and-place equipment regarding the 0603 footprint dimensions. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a low-inductance value near 3.9 nH is required for high-frequency circuitry. The unshielded configuration allows for flexible layout placement but requires consideration of parasitic coupling. Evaluate the 500 mA current rating against peak operational loads to ensure reliability under thermal stress conditions.

Fixed Inductors Part Context

This part belongs to the Accu-L series of fixed RF inductors designed for surface-mount technology. It complements other components in KYOCERA AVX's portfolio by providing precise inductance values for microwave and RF applications. The thin film manufacturing process ensures consistent electrical characteristics across production batches.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical parameters with alternative manufacturers if sourcing constraints require substitution.
