L0805R101KPWRT

Fixed Inductors Overview

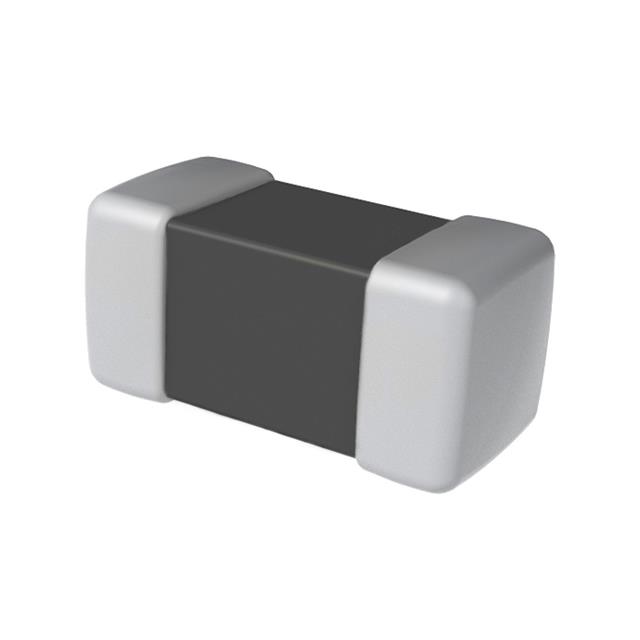

The KEMET L0805R101KPWRT is a surface-mount power inductor designed for high-frequency applications. It features a wirewound construction with an unshielded drum core, providing an inductance of 100 µH and a tolerance of ±10%. The component is rated for a maximum DC current of 50 mA and has a maximum DC resistance of 4 Ohms. It utilizes a standard 0805 (2012 Metric) package footprint, measuring 2 mm in length, 1.25 mm in width, and 0.78 mm in height. The device operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Wirewound construction with an unshielded drum core design
• Compact 0805 surface-mount package format
• High stability across a wide operating temperature range

Fixed Inductors Applications

• DC-DC converter circuits
• Power supply filtering stages
• Signal processing choke applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging options such as tape and reel quantities. Confirm that the selected variant meets all necessary environmental certifications and compliance standards for the intended application. Cross-reference the manufacturer's latest documentation to validate current availability status and any potential end-of-life notifications before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when a compact form factor is required alongside moderate inductance values for low-current power paths. Evaluate the 50 mA current rating against peak load requirements to prevent saturation. Consider the unshielded nature of the drum core regarding potential electromagnetic interference coupling with adjacent sensitive circuitry during layout design.

Fixed Inductors Part Context

This part belongs to KEMET's general-purpose SMD power inductor portfolio, specifically engineered for space-constrained designs. The 0805 size offers a balance between electrical performance and board real estate efficiency. It serves as a fundamental passive component for energy storage and noise suppression in modern electronic systems requiring reliable magnetic components.

Fixed Inductors Replacement Considerations

Direct substitution requires matching the 100 µH inductance, 50 mA current rating, and 0805 footprint. Verify that alternative suppliers offer comparable DC resistance and thermal characteristics to maintain circuit performance integrity.
