L1008L2R2MDMIT

Fixed Inductors Overview

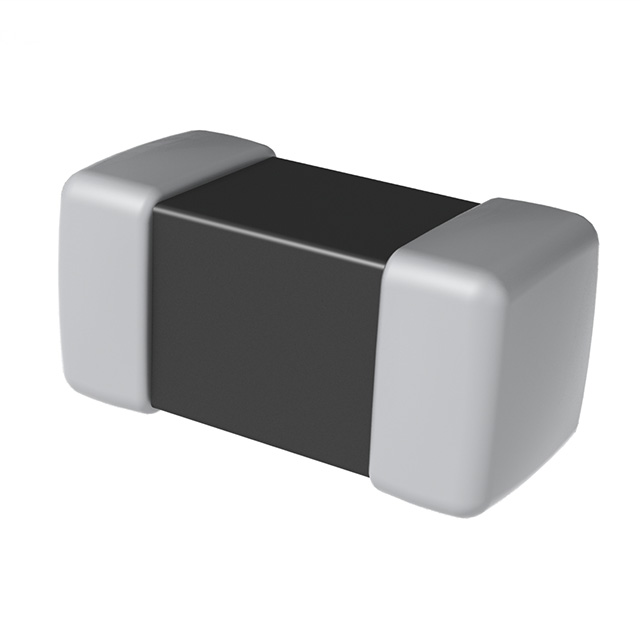

The KEMET L1008L2R2MDMIT is a shielded multilayer power inductor from the L-DMI series, designed for surface-mount applications. It features a ferrite core and offers an inductance of 2.2 µH with a tolerance of ±20%. The component supports a maximum DC current of 1.2 A and has a maximum DC resistance of 100 mOhms. It operates within a temperature range of -40°C to +85°C. The physical dimensions are 2.5 mm in length, 2.0 mm in width, and 1.0 mm in height, conforming to the 1008 (2520 metric) package.

Fixed Inductors Feature Summary

• Shielded construction utilizing a ferrite core to minimize electromagnetic interference.
• Multilayer design optimized for high-power surface-mount circuit integration.

Fixed Inductors Applications

• Commercial electronic equipment
• Power supply filtering circuits
• General-purpose signal processing

Fixed Inductors Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance details via official documentation. Ensure storage conditions maintain integrity prior to assembly. Validate pin compatibility with target PCB footprint. Review datasheet for handling precautions specific to multilayer ceramic structures.

Fixed Inductors Selection Notes

Evaluate thermal performance against operational limits of -40°C to +85°C. Assess current requirements to ensure 1.2 A rating suffices for peak loads. Consider shielding needs to prevent magnetic coupling issues. Compare DC resistance impact on overall circuit efficiency. Verify package dimensions fit spatial constraints on the printed circuit board.

Fixed Inductors Part Context

This component belongs to the L-DMI series of power inductors manufactured by KEMET. It represents a standard solution for compact, shielded energy storage in modern electronics. The series emphasizes reliability and consistent electrical characteristics for commercial grade applications.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult manufacturer resources for direct replacements or verify cross-reference databases for compatible alternatives.
