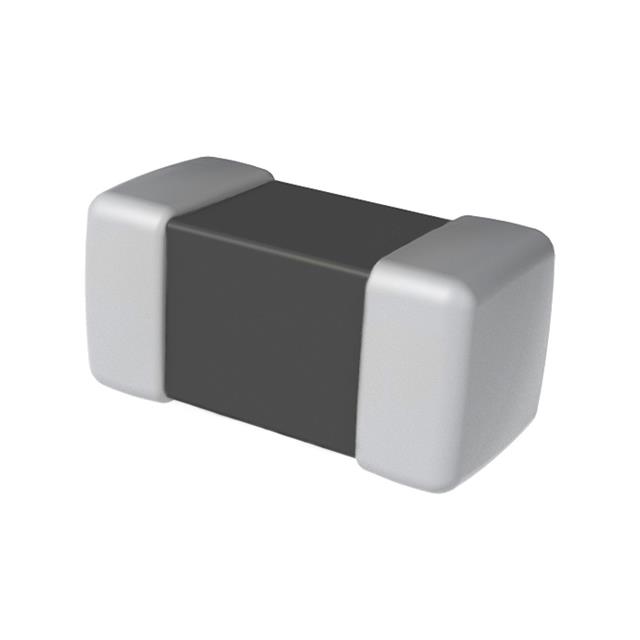

L1210R150KDWIT

Description：INDUCTOR, WW SMD
Series：L-DWI
Mfr：KEMET
Package：Tape & Reel (TR)

SKU:aadfbedd4fe1 Category: Fixed Inductors Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L1210R150KDWIT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists KEMET. Its product description is INDUCTOR, WW SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for L1210R150KDWIT

Description：INDUCTOR, WW SMD
Series：L-DWI
Mfr：KEMET
Package：Tape & Reel (TR)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：15 µH
Tolerance：±10%
Current Rating (Amps)：850 mA
Current - Saturation (Isat)：730mA
Shielding：Unshielded
DC Resistance (DCR)：195mOhm
Q @ Freq：-
Frequency - Self Resonant：20MHz
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：1210 (3225 Metric)
Supplier Device Package：1210
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.106" (2.70mm)
Features：-

Fixed Inductors datasheet and documents for L1210R150KDWIT

L1210R150KDWIT

Fixed Inductors Overview

The KEMET L1210R150KDWIT is a surface-mount power inductor from the L-DWI series, housed in a 1210 (3225 metric) package. It features an unshielded drum core design with wirewound construction. The component provides an inductance of 15 µH with a tolerance of ±10%. It supports a saturation current of 850 mA and a DC resistance of 195 mΩ.

Fixed Inductors Feature Summary

Unshielded drum core construction for high-current handling
Wirewound technology ensuring stable performance
Flexible termination system to mitigate flex cracking

Fixed Inductors Applications

Switching DC-DC power supplies
Mobile equipment power circuits
General-purpose power filtering

Fixed Inductors Procurement Notes

Verify the specific suffix 'DWIT' against the manufacturer's official documentation to confirm the exact electrical characteristics and packaging details. Ensure that the unshielded configuration aligns with your electromagnetic interference requirements. Confirm RoHS compliance status directly with the supplier or datasheet before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a compact 1210 footprint is required for moderate current applications up to 850 mA. The unshielded design may necessitate careful PCB layout to manage magnetic field interactions. Consider the 195 mΩ DC resistance impact on efficiency. Verify thermal dissipation capabilities within the target enclosure environment.

Fixed Inductors Part Context

This part belongs to KEMET’s L-DWI series of power inductors, designed for space-constrained electronics. The series utilizes flexible termination technology to enhance reliability against mechanical stress during soldering and operation. It serves as a passive energy storage element in various power management topologies.
