L150B-QEC

LED Indication - Discrete Overview

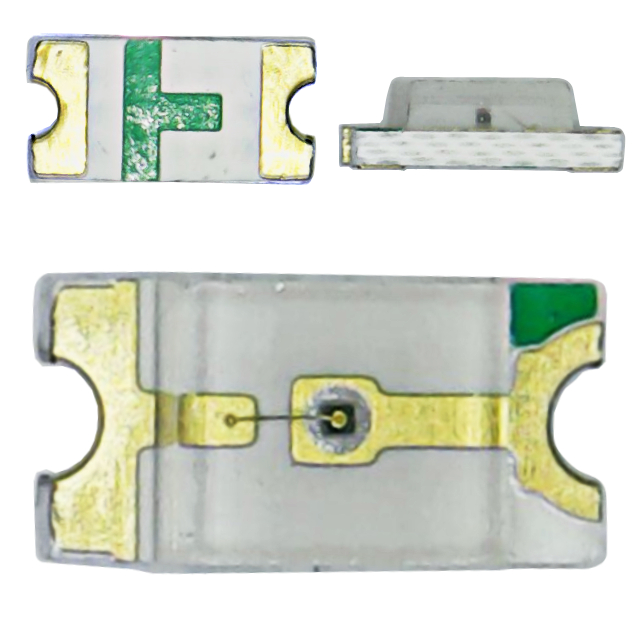

The L150B-QEC is a discrete red light-emitting diode manufactured by American Opto Plus LED. It features a dominant wavelength of 630nm and operates with a forward voltage of 2V. The component utilizes a 1206 (3216 Metric) surface-mount package, measuring 3.2mm x 1.6mm x 1.1mm. It provides a luminous intensity of 70mcd, suitable for standard indication applications.

LED Indication - Discrete Feature Summary

• Surface-mount design in a compact 1206 footprint
• Red emission at 630nm wavelength
• Discrete diode configuration

LED Indication - Discrete Applications

• Panel indicator lights
• Status indication on electronic devices
• General-purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet from American Opto Plus LED to confirm electrical characteristics and mechanical dimensions. Ensure compatibility with automated pick-and-place equipment due to the SMD form factor. Cross-reference part numbers carefully, as suffixes like TR may indicate tape-and-reel packaging variations.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red LED is required for space-constrained designs. The 1206 package offers a balance between visibility and board real estate. Consider the 2V forward voltage drop during circuit design to ensure appropriate current limiting resistors are used for reliable operation.

LED Indication - Discrete Part Context

This part belongs to the L150B series of surface-mount LEDs from American Opto Plus LED. The series typically includes various colors and package sizes. The QEC suffix likely denotes specific optical or material properties within this product line, distinguishing it from other variants like the L150B-RC.

LED Indication - Discrete Replacement Considerations

Direct substitutes should match the 1206 package, 630nm wavelength, and similar forward voltage. Check manufacturer cross-reference lists for equivalent parts from other suppliers that meet these exact physical and electrical specifications.
