L152L-QBC

LED Indication - Discrete Overview

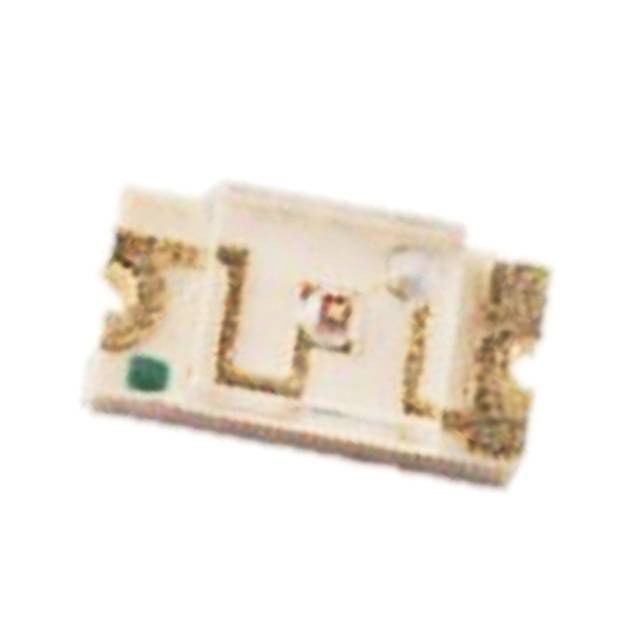

The L152L-QBC is a blue surface-mount LED from American Opto Plus LED, housed in a 1206 (3216 Metric) package with dimensions of 2.00mm x 1.60mm. It features a clear lens and emits light at a dominant wavelength of 470nm with a peak wavelength of 465nm. Typical forward voltage is 3.5V, and the millicandela rating is 10mcd. The component supports a forward current of 20mA and offers a wide viewing angle of 140 degrees.

LED Indication - Discrete Feature Summary

• Blue illumination with clear lens transparency
• Wide 140-degree viewing angle for broad visibility
• Standard 1206 surface-mount form factor

LED Indication - Discrete Applications

• Panel indicator lighting
• Equipment status signaling
• Consumer electronics display backlighting

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal characteristics. Ensure compatibility with standard reflow soldering profiles for 1206 packages. Check for any specific handling requirements regarding moisture sensitivity levels before assembly.

LED Indication - Discrete Selection Notes

Choose this component when a compact blue indicator is required with high visibility due to its wide viewing angle. Consider the 3.5V forward voltage drop for circuit design. The 1206 package size suits space-constrained printed circuit board layouts.

LED Indication - Discrete Part Context

This part belongs to the American Opto Plus LED discrete indication series, designed for general-purpose visual signaling. The manufacturer specializes in SMD LEDs and displays, providing components for automotive and industrial applications since 1973.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 1206 blue LEDs with similar wavelength and voltage characteristics. Verify pinout compatibility and mechanical footprint dimensions before swapping.
