L196L-LIC-TR

LED Indication - Discrete Overview

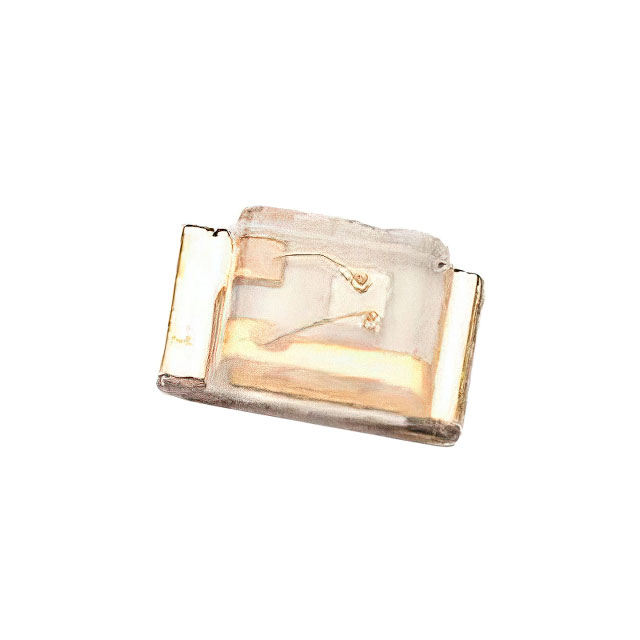

The L196L-LIC-TR is a surface-mount RGB LED component manufactured by American Opto Plus LED. It features a common anode configuration within a 4-PLCC package, measuring 3.20mm in length and 2.80mm in width. The device emits red light at a peak wavelength of 635nm with a typical forward voltage of 2.1V and a luminous intensity of 850mcd. Green emission occurs at a peak wavelength of 525nm, characterized by a 3.2V forward voltage and 1500mcd intensity. Blue light output is centered at 460nm peak wavelength, also utilizing a 3.2V forward voltage with 330mcd intensity. All color channels operate at a test current of 20mA.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue emitters into a single compact surface-mount package for multi-color applications
• Features a common anode electrical configuration to simplify circuit design and control wiring
• Utilizes a circular lens with a flat top design to provide a consistent 120-degree viewing angle

LED Indication - Discrete Applications

• Status indication in electronic devices requiring multi-color signaling
• Backlighting solutions for displays and user interface panels
• Decorative lighting systems utilizing programmable color mixing

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix matches the required tape and reel quantity for automated assembly processes. Confirm that the RoHS3 compliance status aligns with environmental regulations applicable to your target market. Ensure the moisture sensitivity level rating is compatible with your facility's reflow soldering profile and storage conditions prior to use.

LED Indication - Discrete Selection Notes

Select this component when a low-profile surface-mount solution is required for space-constrained designs. The common anode structure offers advantages for shared ground connections in multiplexed display arrays. Evaluate the specific luminous intensity requirements for each primary color channel to ensure adequate visibility under intended operating conditions.

LED Indication - Discrete Part Context

This part belongs to the family of surface-mount LEDs produced by American Opto Plus LED. The manufacturer specializes in producing various LED lamps, displays, and related optoelectronic products. The company has been manufacturing these components since 1973, establishing a history of producing standard and specialized LED indicators for industrial and consumer electronics.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference databases for electrically equivalent RGB LEDs with identical pinout configurations. Verify that substitute components match the 4-PLCC footprint dimensions and thermal characteristics to ensure proper board compatibility.
