L234QBC-TR

LED Indication - Discrete Overview

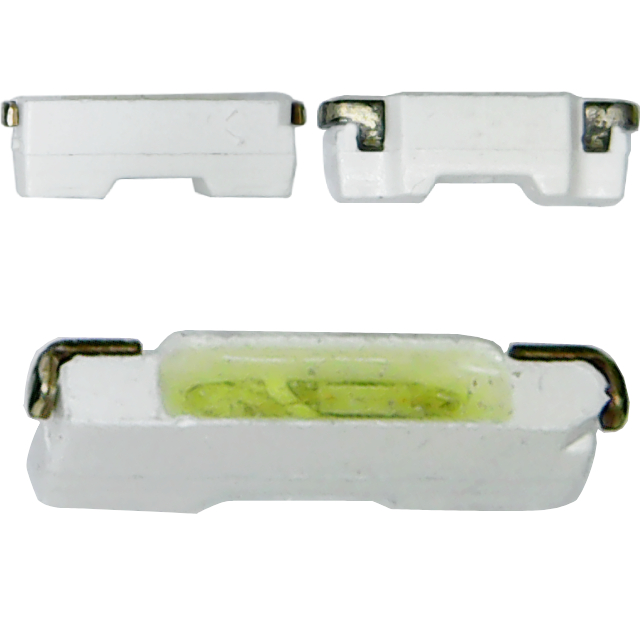

The L234QBC-TR is a surface-mounted LED from American Opto Plus, featuring an InGaN blue die with a 455nm wavelength. It emits light through a water-clear lens at a 120-degree angle with an intensity of 200mcd. The component measures 3.8 x 0.6 x 1.2mm and utilizes a right-angle SMD package. It operates at a forward voltage of 3.2V and is supplied in tape and reel format.

LED Indication - Discrete Feature Summary

• Right-angle surface mount design for vertical board mounting
• Water-clear lens material for precise light transmission
• InGaN blue semiconductor technology

LED Indication - Discrete Applications

• Panel indicator lighting
• Electronic device status signaling
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version against the manufacturer's current documentation to ensure compliance with updated specifications. Confirm RoHS compliance status and lead-free characteristics prior to integration into production assemblies. Cross-reference the part number suffix to confirm the tape and reel packaging configuration matches the automated assembly requirements.

LED Indication - Discrete Selection Notes

Select this component when a right-angle orientation is required for space-constrained PCB layouts. The 120-degree viewing angle provides broad visibility for status indication. Ensure the 3.2V forward voltage aligns with the driving circuit capabilities. Consider the physical dimensions of 3.8 x 0.6 x 1.2mm for mechanical clearance verification within the target enclosure.

LED Indication - Discrete Part Context

This part belongs to the American Opto Plus SMD LED series, which includes various colors and package styles. The L234QBC-TR specifically addresses applications requiring blue illumination in a compact form factor. The manufacturer has produced LED products since 1973, offering both standard and specialized display solutions.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing footprints if considering alternative suppliers.
