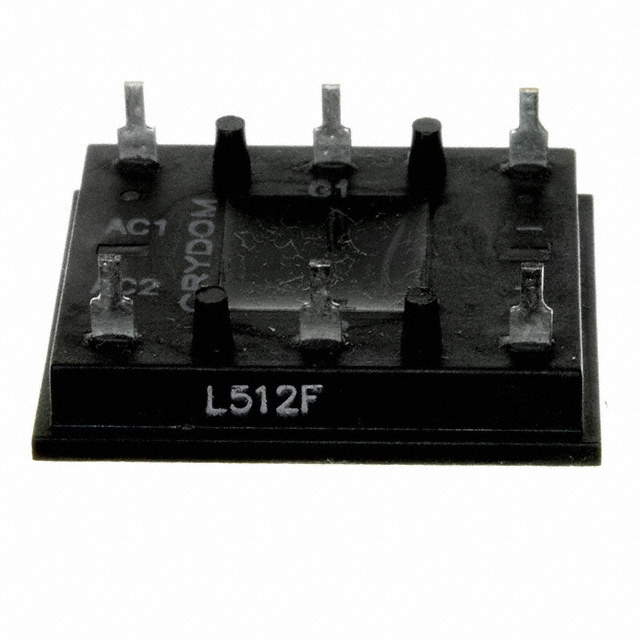

L512F

$78.73

Description：MODULE SCR/DIODE 25A 240VAC PCB
Series：L

SKU:d00fffb1a836 Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE SCR/DIODE 25A 240VAC PCB
Series：L
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：600 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：300A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Through Hole
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：100 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

L512F

Overview

The L512F is a six-pin PCB mount SCR/Diode power module from the Crydom L Series. It features a low-profile design with an integrated free-wheeling diode, suitable for printed circuit board connections. The module has a maximum DC output current of 25A and a peak repetitive off-state voltage of 600V. The gate trigger current maximum is 100mA, with an average on-state current of 260A.

Feature Summary

Integrated free-wheeling diode functionality
Low-profile construction optimized for PCB mounting
Six-pin configuration for direct board connection

Applications

Single-phase bridge rectifier circuits
Power modules requiring integrated freewheeling paths
Applications utilizing PCB-based thyristor control

Procurement Notes

Verify the specific datasheet version to confirm electrical ratings and pinout compatibility. Ensure the PCB layout supports the six-pin package dimensions and thermal requirements for the 25A continuous current rating. Cross-reference the 600V blocking voltage against system peak voltages to prevent breakdown.

Selection Notes

Select this component when a compact, PCB-mountable solution is required for single-phase AC-DC conversion or phase control. The inclusion of the free-wheeling diode simplifies circuit design by eliminating the need for external components. Consider the 260A surge capability for inductive load switching scenarios.

Part Context

Part of the Crydom L Series, which provides low-profile connectors designed specifically for printed circuit board integration. This series offers multiple circuit options to accommodate various power electronics applications while maintaining a small footprint.

Replacement Considerations

Consult official Sensata-Crydom documentation for verified substitute part numbers within the L Series or compatible discrete semiconductor modules that match the 25A/600V specifications and six-pin PCB form factor.
