L513GD-TR

LED Indication - Discrete Overview

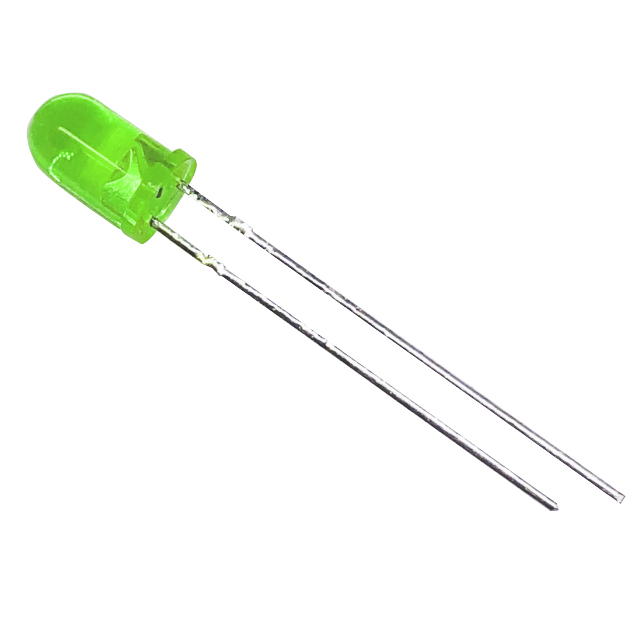

The L513GD-TR is a green light-emitting diode manufactured by American Opto Plus LED. It features a standard 2-lead radial leaded package configuration suitable for through-hole mounting applications. The device emits light at a peak wavelength of 525 nm with a typical forward voltage of 3.2 V when tested at a current of 20 mA. The component provides a luminous intensity of 1500 mcd and utilizes a round lens style with a flat top design to optimize light distribution. It operates within a temperature range extending up to +125 C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Emits monochromatic green light centered at 525 nm
• Features a 120-degree viewing angle for wide dispersion
• Utilizes a durable round lens with a flat top surface

LED Indication - Discrete Applications

• Visual status indicators in electronic equipment
• Panel mount indicator lights
• General purpose signal indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation against the manufacturer's official documentation to confirm exact binning, spectral characteristics, and packaging format. Ensure that the selected variant matches the required forward voltage and luminous intensity specifications for the target application circuit design.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-intensity green visual signaling. The 120-degree viewing angle ensures visibility from broad angles. Confirm compatibility with through-hole assembly processes and verify thermal management requirements given the maximum operating temperature rating of +125 C.

LED Indication - Discrete Part Context

This component belongs to the family of discrete indicator LEDs produced by American Opto Plus LED. These devices are designed to replace traditional incandescent bulbs, offering longer lifetimes and lower power consumption. The specific model represents a standard green emission option within their broader portfolio of visible spectrum optoelectronic components.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameters before replacing existing units in established designs.
