L513SRD-A

LED Indication - Discrete Overview

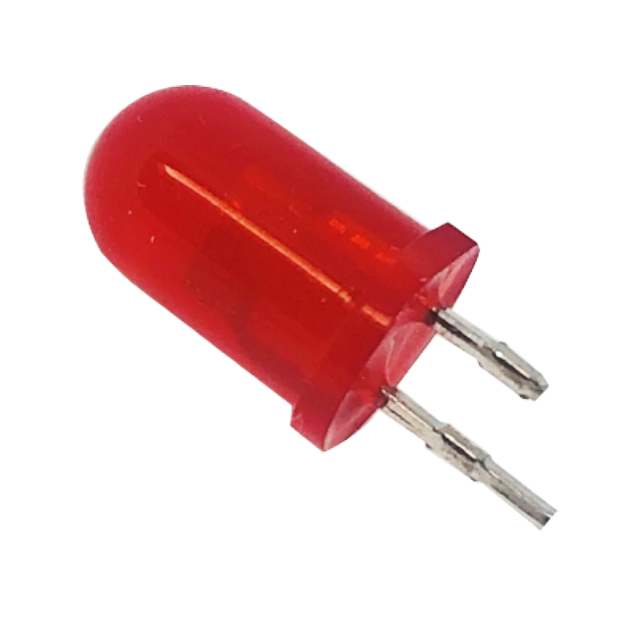

The L513SRD-A is a single-color LED component manufactured by American Opto Plus LED, classified as a high-efficiency red light-emitting diode. It utilizes a Gallium Phosphide material structure to produce a bright red source color. The device features a radial mount configuration with a rectangular solid lamp package measuring 2.5x5mm. Key electrical parameters include a peak wavelength of 627nm and a maximum continuous forward current rating of 30mA. The unit operates within a temperature range of -40°C to 85°C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• High-efficiency red light emission utilizing Gallium Phosphide technology
• Uniformity of light output for consistent visual indication
• Rugged construction suitable for demanding environments

LED Indication - Discrete Applications

• General purpose indicator lighting
• Control panel status displays
• Electronic equipment signal indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'A' against official manufacturer documentation to confirm exact binning or optical characteristics. Ensure the ordering part number matches the required lead spacing and lens type specifications. Confirm compliance requirements such as RoHS status directly with the supplier before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a high-efficiency red indicator is required in a radial 2.5x5mm form factor. Consider the 30mA maximum current rating and 627nm peak wavelength for visibility needs. Evaluate thermal management capabilities given the specified operating temperature range for the intended application environment.

LED Indication - Discrete Part Context

This component belongs to the L513 series of rectangular solid lamps from American Opto Plus LED. The series includes various colors such as green, yellow, and orange variants like the L513GDT and L513YDT. These devices share common mechanical dimensions and mounting styles, differing primarily in semiconductor materials and resulting emission wavelengths.

LED Indication - Discrete Replacement Considerations

Cross-reference equivalent radial 5mm LEDs from other manufacturers if supply constraints exist. Verify that substitute parts match the 2.5x5mm package dimensions and 2.54mm lead spacing. Ensure replacement components meet or exceed the 30mA current rating and 627nm wavelength requirements.
