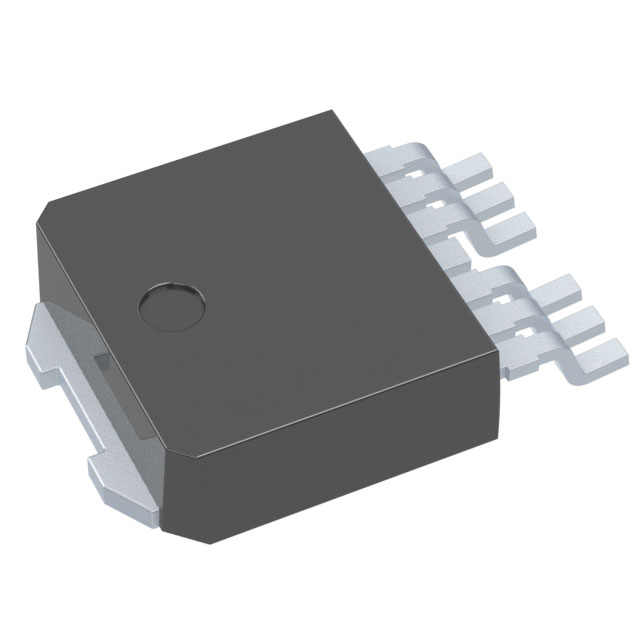

L5300AH7TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The L5300AH7TR is a low dropout linear regulator with microprocessor control functions, including power-on reset and low-voltage reset. It features a fixed 5 V output with ±2% accuracy and supports up to 300 mA load current. The device operates within an input voltage range of 5.6 V to 40 V and maintains stability using only low-value ceramic capacitors (≥220 nF). Quiescent current is typically 60 μA at zero output current and drops to 10 μA in disable mode. It includes thermal shutdown, short-circuit protection, and an enable pin for power management.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Integrated microprocessor control functions including power-on reset and low-voltage reset
• Very low consumption mode with quiescent current dropping to 10 μA when disabled
• Requires only low-value ceramic capacitors (≥220 nF) for stability
• Includes programmable reset pulse delay via external capacitor

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Automotive electronic systems requiring AEC-Q100 qualified components
• Microprocessor power supply circuits with reset monitoring needs
• Battery-powered devices utilizing low quiescent current modes
• Industrial control systems operating in wide temperature ranges

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the component matches the specific automotive grade requirements by confirming AEC-Q100 qualification status on the official datasheet. Ensure the TO-252-7 package variant aligns with your PCB footprint design constraints. Cross-reference the manufacturing date code and RoHS compliance details directly from the supplier's documentation to guarantee material specifications meet your assembly standards.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this regulator when designing circuits that require precise 5 V regulation with integrated reset logic for microprocessors. It is suitable for applications needing high input voltage tolerance up to 40 V while maintaining low static power consumption. Consider its thermal performance and dropout characteristics relative to your maximum load current and ambient temperature conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the L5300AH7 series of low dropout voltage regulators manufactured by STMicroelectronics. It is categorized under PMIC - Power Management ICs and is specifically designed for automotive and industrial applications requiring high reliability and precision voltage regulation with embedded safety features.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Consult official STMicroelectronics documentation for verified cross-reference part numbers. Ensure any substitute maintains identical pinout, voltage ratings, and automotive qualification standards.
