L612F

Overview

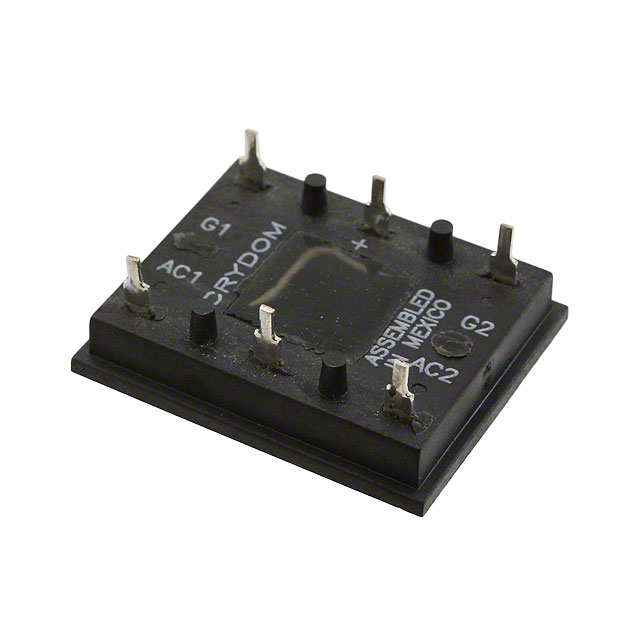

The Sensata-Crydom L612F is a single-phase bridge rectifier module utilizing Silicon Controlled Rectifiers (SCRs) and diodes. It features a half-controlled circuit configuration with a peak reverse voltage of 400V and an average forward current rating of 42.5A. The device operates within a junction temperature range of -40°C to 125°C, ensuring reliability in demanding environments. Designed for PCB mounting, it integrates two SCRs and two diodes into a compact package suitable for power conversion applications requiring precise control.

Feature Summary

• Half-controlled bridge rectifier topology integrating SCRs and diodes
• PCB mount design for direct board integration
• High thermal stability across extended temperature ranges

Applications

• Industrial power supply systems
• Motor speed control circuits
• Heating element regulation

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and pinout compatibility before integration. Ensure that the PCB layout supports the required current handling and thermal dissipation characteristics. Confirm that the input voltage does not exceed the 400V peak reverse rating under all operating conditions. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Selection Notes

Select this component when a half-controlled AC-to-DC conversion is required with moderate current capacity. The 42.5A rating suits applications needing efficient power management without excessive heat generation. Consider the PCB mounting style for space-constrained designs. Evaluate the thermal environment to ensure operation remains within the specified -40°C to 125°C junction temperature limits for long-term reliability.

Part Context

This part belongs to the Crydom family of power modules, known for robust semiconductor solutions. It serves as a critical interface between AC sources and DC loads, providing controlled power delivery. The integration of SCRs allows for phase-angle control, distinguishing it from standard diode bridges. This module represents a balance of performance and compactness for industrial electronics.

Replacement Considerations

Direct substitutes must match the 42.5A current rating, 400V voltage rating, and half-controlled bridge topology. Verify identical PCB footprint and pin configuration to ensure mechanical compatibility. Cross-reference thermal resistance values to maintain equivalent heat dissipation capabilities in the existing system design.
