Product Detailed Parameters
- Description：IC REG LINEAR 5V 500MA SMP5
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Output Configuration：Positive
- Output Type：Fixed
- Number of Regulators：1
- Voltage - Input (Max)：20V
- Voltage - Output (Min/Fixed)：5V
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：2V @ 350mA (Typ)
- Current - Output：500mA
- Current - Quiescent (Iq)：-
- Current - Supply (Max)：-
- PSRR：63dB ~ 54dB (120Hz)
- Control Features：Enable
- Protection Features：Over Current, Over Temperature
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount

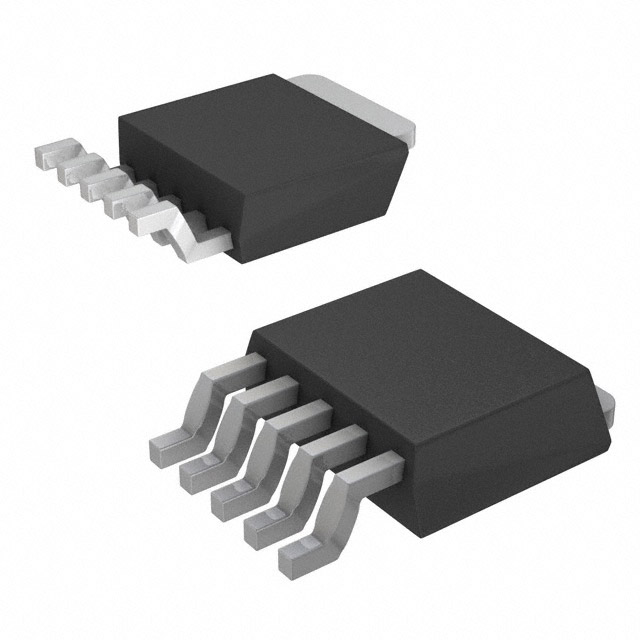

- Package / Case：TO-252-6, DPAK (5 Leads + Tab)
- Supplier Device Package：SMP5
- Grade：-
- Qualification：-
Download product information
Overview
The L78MS05JSMP-AN-DLM-E is a specialized power management integrated circuit manufactured by onsemi. It functions as a fixed linear voltage regulator designed to provide a stable 5V output with a maximum current capacity of 0.5A. The device supports an input voltage up to 24V and operates within a standard commercial temperature range. Packaged in a reel format, this component belongs to the PMIC category and is intended for applications requiring reliable positive voltage regulation.
Feature Summary
- Provides a fixed positive output voltage of 5V
- Supports output currents up to 0.5A
- Accepts input voltages up to 24V
Applications
- General purpose linear voltage regulation
- Power supply conditioning for low-current circuits
- Embedded system power management
Procurement Notes
Verify the specific ordering suffix and package configuration against official onsemi documentation before procurement. Confirm moisture sensitivity level (MSL) requirements and reflow soldering profiles to ensure compliance with handling standards. Check for any recent product change notifications or compliance updates that may affect availability or specifications.
Selection Notes
Select this component when a fixed 5V output at 0.5A is required from an input source up to 24V. Ensure the thermal dissipation capabilities of the chosen package meet the application's power loss requirements. Verify that the operating temperature range aligns with the environmental conditions of the target system.
Part Context
This part is classified under Professional Power Management (PMIC) products from onsemi. It falls within the sub-category of PMIC - Power Management ICs. The device is distinct from general-purpose regulators by its specific integration into onsemi's specialized power management portfolio, targeting industrial and commercial electronics.
Replacement Considerations
Consult official cross-reference guides for compatible alternatives. Verify pinout compatibility and electrical specifications such as dropout voltage and thermal resistance before substituting.
