Product Detailed Parameters
- Description：IC REG LINEAR 5V 1A TO220-5H
- Series：-
- Mfr：onsemi
- Package：Tube
- Output Configuration：Positive
- Output Type：Fixed
- Number of Regulators：1
- Voltage - Input (Max)：17V
- Voltage - Output (Min/Fixed)：5V
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：0.5V @ 300mA
- Current - Output：1A
- Current - Quiescent (Iq)：-
- Current - Supply (Max)：-
- PSRR：60dB (120Hz)
- Control Features：Enable
- Protection Features：Over Current, Over Temperature
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Through Hole

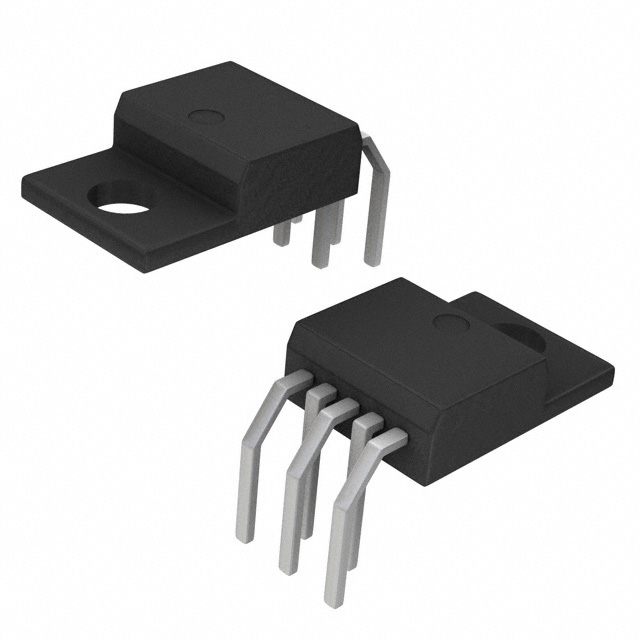

- Package / Case：TO-220-5 Formed Leads
- Supplier Device Package：TO-220-5H
- Grade：-
- Qualification：-
Download product information
Overview
The L88R05DL-E is a linear voltage regulator manufactured by onsemi, designed for through-hole mounting. It provides a fixed positive output voltage of 5 V with an output current capability of 1 A. The device operates within an input voltage range from 5.6 V to 17 V. It functions reliably across a temperature range of -40 °C to +85 °C. Key performance metrics include a line regulation of 70 mV and a load regulation of 150 mV. The component is packaged in Ammo Pack and belongs to the PMIC category.
Feature Summary
- Provides a fixed 5 V positive output voltage
- Supports up to 1 A output current
- Operates with input voltages between 5.6 V and 17 V
- Includes diagnostic capabilities for squib interface
Applications
- Linear voltage regulation in electronic circuits
- Power management integrated circuits (PMIC)
- Squib interface diagnostics
Procurement Notes
Verify the End-of-Life status before procurement as the manufacturer indicates the part is obsolete and will be discontinued. Confirm RoHS compliance details directly with the supplier. Ensure the Ammo Pack packaging aligns with assembly requirements. Check for any specific minimum order quantities or factory pack constraints that may apply to this legacy component.
Selection Notes
Select this component when a fixed 5 V linear regulation is required with through-hole installation. Consider the 1 A current limit and 17 V maximum input voltage for circuit design. Evaluate the operating temperature range of -40 °C to +85 °C against environmental conditions. Note the specific line and load regulation values for precision requirements.
Part Context
This component is part of onsemi's linear voltage regulator portfolio, specifically categorized under PMICs. It serves as a power management solution for applications requiring stable voltage conversion. The L88R05DL-E is distinct within the series due to its specific output voltage and current ratings, tailored for through-hole PCB implementations.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the End-of-Life status, alternative components must be identified based on matching electrical specifications such as 5 V output, 1 A current, and through-hole package compatibility.
