L90HB12G

Overview

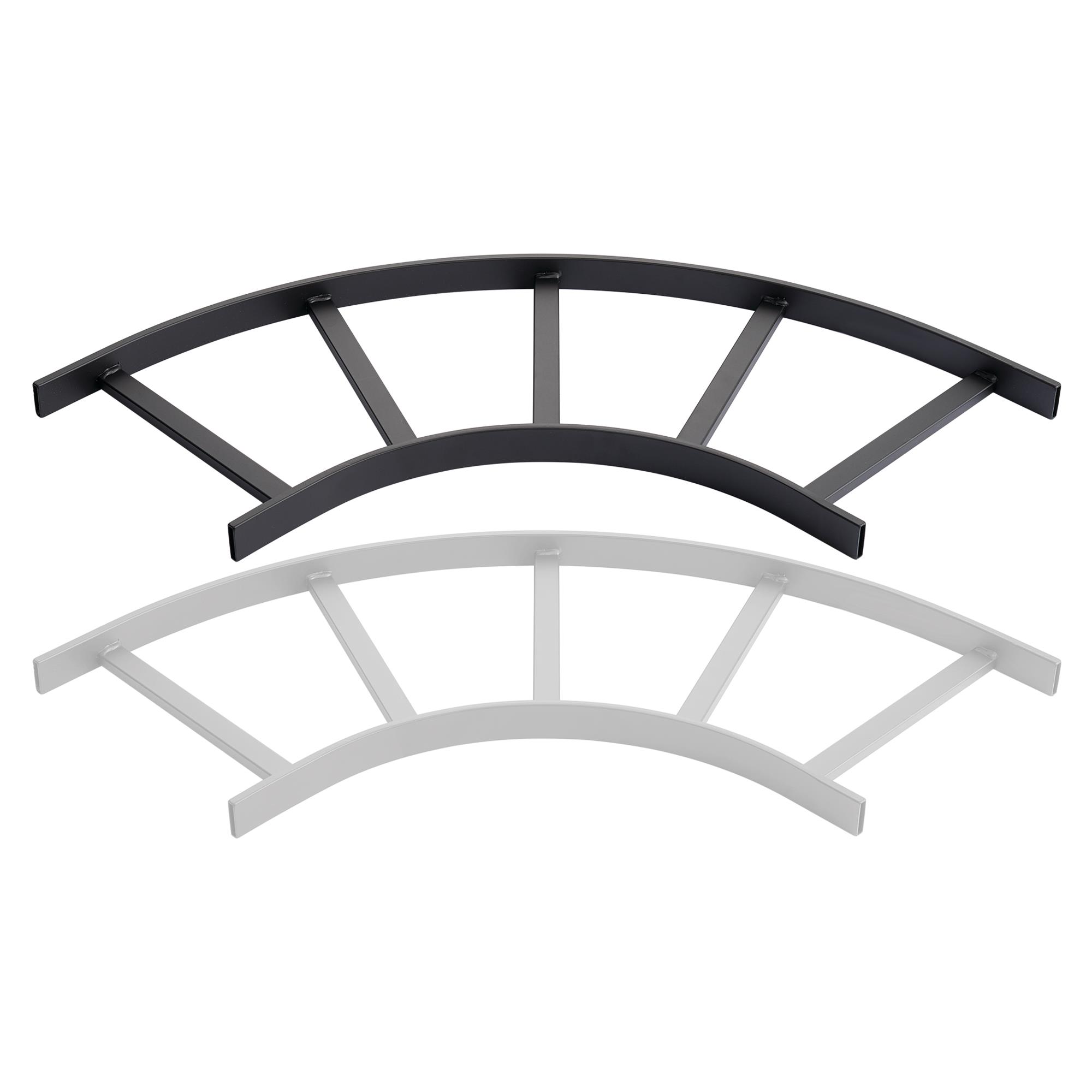

The Hoffman L90HB12G is a horizontal E-bend section designed for cable runway systems. It provides a 90-degree horizontal change in direction and fits 12-inch steel ladder racks. Constructed from 1-1/2 inch by 3/8 inch (38 mm x 8 mm) tubular steel, it features a gray painted or plated finish. The unit is suitable for routing Cat 5e, Cat 6, Cat 6A, and fiber optic cables within industrial enclosure environments.

Feature Summary

• Provides a 90-degree horizontal directional change for cable runways
• Constructed from durable tubular steel with protective finish
• Compatible with standard 12-inch wide steel ladder rack systems

Applications

• Routing Cat 5e, Cat 6, and Cat 6A network cables
• Managing fiber optic cable pathways
• Industrial enclosure wiring infrastructure

Procurement Notes

Verify the specific finish requirement, as the model may be available in painted or plated variants. Confirm compatibility with existing 12-inch ladder rack dimensions. Ensure the component meets necessary safety certifications such as cULus for the intended installation environment.

Selection Notes

Select this component when a 90-degree horizontal transition is required in a cable management system. Ensure the host ladder rack width matches the 12-inch specification. Consider environmental conditions to determine if a painted or plated steel finish is appropriate for corrosion resistance.

Part Context

This part belongs to the nVent HOFFMAN cable runway accessory line. It serves as a critical connector for changing cable path directions without sharp bends that could damage wires. It complements straight sections and other bend types to create complete routing solutions.

Replacement Considerations

The L90HB12GZ is a confirmed substitute variant. Verify that the Z suffix indicates the specific finish type required for the application. Ensure mechanical fitment remains identical to the original design.
