L9110S

Overview

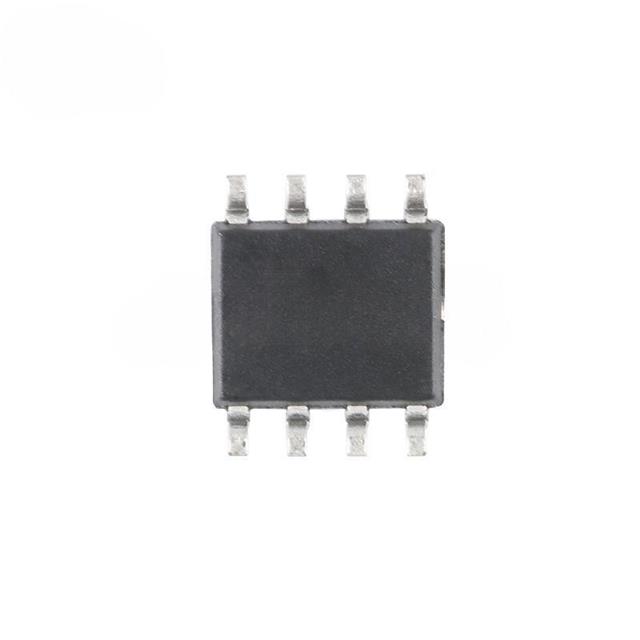

UMW L9110S is a dual-channel push-pull power amplifier integrated circuit designed for motor control. It operates within a supply voltage range of 2.5V to 12V and supports continuous output currents up to 800mA per channel, with peak currents reaching 1.5A. The device features low static standby current below 0.1μA and accepts TTL/CMOS logic levels compatible with 3.3V or 5V microcontrollers. Packaged in SOP-8, it integrates H-bridge topology for bidirectional drive.

Feature Summary

• Integrates dual H-bridge circuits for independent control of two DC motors or one stepper motor
• Includes built-in clamping diodes to suppress back electromotive force from inductive loads
• Supports PWM signal input for precise speed regulation while maintaining direction control via logic levels
• Features high pin voltage protection and low saturation voltage drop for improved efficiency

Applications

• Robotics motor control systems
• Small vehicle drive mechanisms
• Toy car motor actuation
• Pulse electromagnetic valve driving

Procurement Notes

Verify the manufacturer marking matches UMW specifications when sourcing components. Confirm the package type is SOP-8 and check for any specific suffix variations that may indicate temperature grade or tape-and-reel packaging. Ensure compatibility with your system's voltage domain before integration.

Selection Notes

Select this component for applications requiring simple bidirectional control of small DC motors without complex external driver stages. It is suitable for battery-powered devices due to its low standby current. Consider thermal dissipation requirements if operating near the maximum continuous current limit.

Part Context

The L9110S belongs to the family of dedicated motor driver ICs used in embedded systems. It simplifies hardware design by replacing discrete transistor H-bridges with a single monolithic solution. This integration reduces board space and component count, making it ideal for compact consumer electronics and educational robotics platforms.

Replacement Considerations

Check for direct pin-compatible alternatives such as generic L9110 variants from other manufacturers. Verify that substitute parts maintain the same 2.5V-12V operating range and 800mA continuous current rating to ensure functional equivalence in existing designs.
