L993L-QEPGBC-3I

LED Indication - Discrete Overview

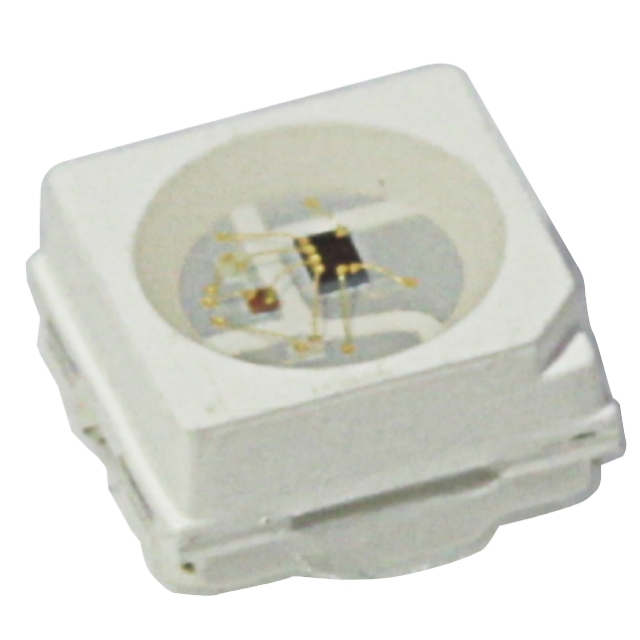

The L993L-QEPGBC-3I is an RGB LED indicator from American Opto Plus LED, featuring integrated control circuitry within a PLCC package. It emits red (622nm), green (523nm), and blue (467nm) light with typical forward voltages of 2.1V for red and 3.2V for green/blue. The component utilizes a clear, round lens with a flat top design, measuring 2.60mm in diameter. Millicandela ratings are specified as 500mcd for red, 1000mcd for green, and 200mcd for blue. This surface-mount device combines color mixing capabilities with simplified interface requirements.

LED Indication - Discrete Feature Summary

• Integrates control logic directly into the LED package to simplify driving circuits
• Provides full-color RGB output using a single surface-mount component
• Features a clear lens with a flat top geometry for consistent light distribution

LED Indication - Discrete Applications

• Status indication in consumer electronics devices
• Color-mixing applications requiring simplified control interfaces
• Panel indicators where space-saving SMD form factors are required

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the L993L-QEPGBC-3I to confirm pinout configurations and electrical limits. Ensure that the receiving environment meets the specified moisture sensitivity level handling requirements. Cross-reference the ordering suffixes to guarantee the correct packaging and lens style match the design specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution with built-in drive electronics is necessary. Consider the millicandela ratings to ensure adequate brightness for the intended viewing distance. Evaluate the thermal management requirements associated with the PLCC package size and the combined power dissipation of the three diodes during operation.

LED Indication - Discrete Part Context

American Opto Plus LED manufactures a range of surface-mount LEDs, including specialized RGB series with integrated controls. The L993L-QEPGBC-3I belongs to their PLCC SMD LED line, designed for high-reliability applications. The company has been producing LED products since 1973, focusing on both standard lamps and advanced SMD displays.

LED Indication - Discrete Replacement Considerations

Direct substitutes must be verified against the official replacement guide or manufacturer cross-reference lists. Generic RGB PLCC components may lack the integrated control features, necessitating additional driver circuitry.
