LA E65F-CADA-24-3A4B-50- R33-Z

LED Indication - Discrete Overview

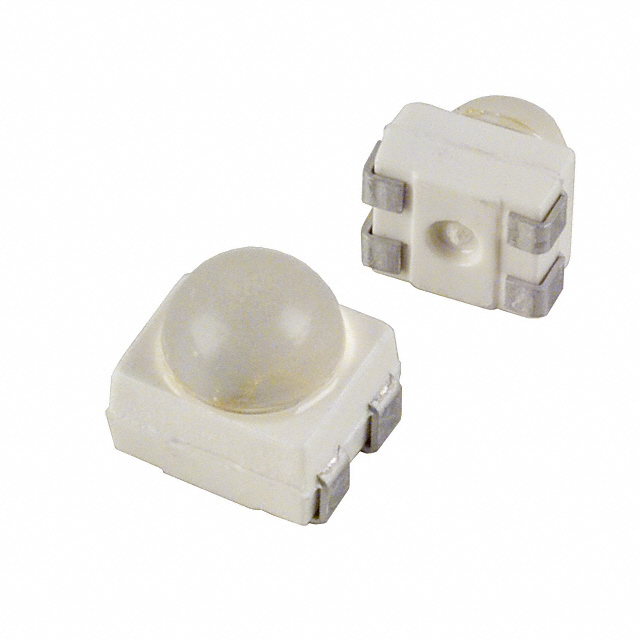

The LA E65F-CADA-24-3A4B-50-R33-Z is a single-color amber LED from the Power TOPLED series by ams OSRAM. It features an SMD/SMT installation style in a TOPLED package with a dome-shaped, colorless lens. Key electrical parameters include a forward current of 50 mA and a forward voltage of 2.15 V. The device emits light at a wavelength of 617 nm with a luminous intensity of 9.25 cd and a luminous flux of 10.2 lm. It has a power rating of 110 mW and operates within a temperature range of -40 °C to +100 °C.

LED Indication - Discrete Feature Summary

• Amber emission at 617 nm wavelength
• High luminous intensity of 9.25 cd
• Dome-shaped clear lens design
• SMD/SMT surface mount construction

LED Indication - Discrete Applications

• Indicator lighting
• Instrumentation displays
• Status signaling

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status via official datasheets. Ensure proper handling due to moisture sensitivity classification. Validate packaging specifications against project requirements before procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-intensity amber indication. Consider the 50 mA forward current and 2.15 V forward voltage for circuit design. Evaluate thermal management needs given the 110 mW power rating and operating temperature limits.

LED Indication - Discrete Part Context

This part belongs to the LA E65F series of Power TOPLED components. It is manufactured by ams OSRAM USA INC. as a single-color LED solution. The specific suffix indicates reel packaging configuration.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
