Product Detailed Parameters
- Description：6 CHANNEL DRIVER FOR OPTICAL DIS
- Series：*
- Mfr：Sanyo
- Package：Bulk
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：-
- Output Configuration：-
- Interface：-
- Technology：-
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：-
- Voltage - Load：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

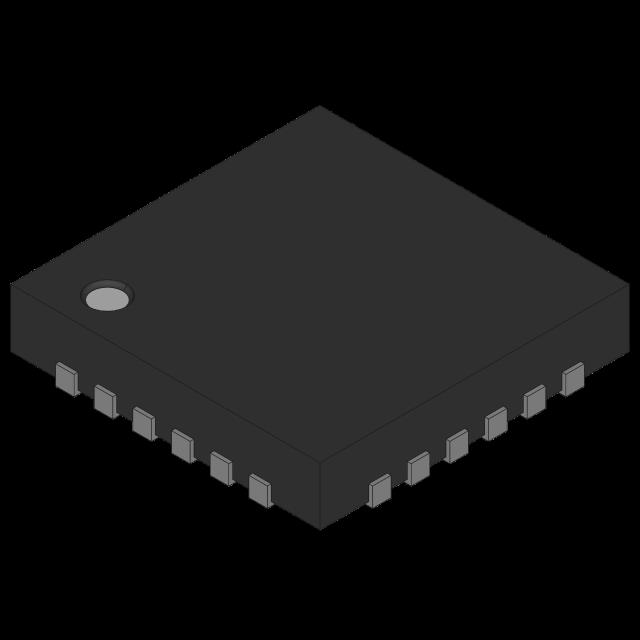

The LA6261-E is a monolithic linear integrated circuit designed for optical disk drive applications. It functions as a six-channel driver, integrating four bridge-tied load (BTL) channels and two H-bridge channels. This configuration allows the device to control multiple actuators simultaneously within compact storage mechanisms.
Feature Summary
- Integrates six output channels in a single package
- Supports BTL and H-bridge driving topologies
- Designed specifically for optical disk drive actuator control
Applications
- Optical disk drives
- CD players
- MD players
Procurement Notes
Verify the exact suffix against the manufacturer's current datasheet to confirm pinout compatibility and thermal specifications. Ensure the component matches the original design requirements for optical drive actuator circuits before integration.
Selection Notes
Select this IC when a multi-channel solution is required for optical media mechanisms. The combination of BTL and H-bridge outputs reduces the need for external discrete components, simplifying the printed circuit board layout for drive systems.
Part Context
Manufactured by Sanyo Semicon Device, this part belongs to a family of drivers tailored for consumer electronics storage devices. It serves as a specialized solution for managing the precise movement of lenses and trays in optical hardware.
Replacement Considerations
Check for direct equivalents such as the AN8813NSB or other Sanyo LA-series drivers like the LA6565VR if system constraints require different channel counts or packaging styles.
