Product Detailed Parameters
- Description：IC MOTOR DRIVER 48HSSOP
- Series：-
- Mfr：onsemi
- Package：Tube,Tube
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：-
- Output Configuration：-
- Interface：-
- Technology：-
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：-
- Voltage - Load：-
- Operating Temperature：-
- Mounting Type：Surface Mount

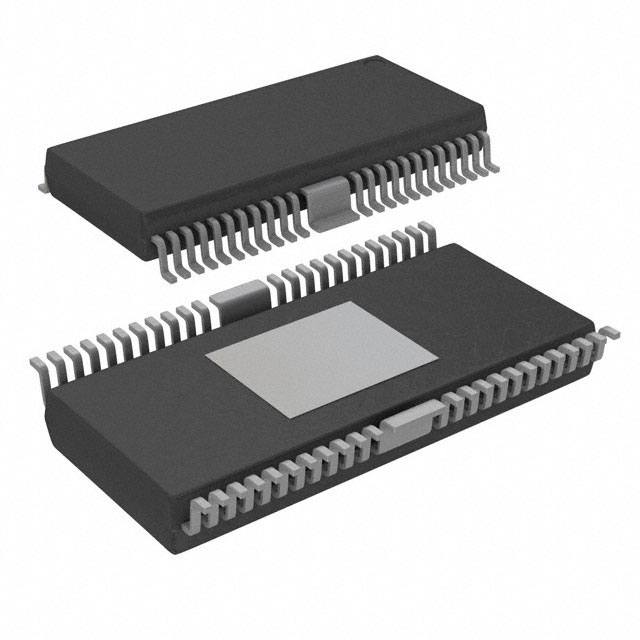

- Package / Case：48-SSOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
- Supplier Device Package：48-HSSOP
- Grade：-
Download product information
Overview
The LA6502-MPB-E is a motor driver integrated circuit manufactured by onsemi, housed in a 48-HSSOP package. It operates within a supply voltage range of 4.4V to 45V and supports a maximum output current of 1A. The device is designed for robust spindle motor control applications, ensuring reliable data access. It functions across an extended temperature range from -40°C to 125°C, making it suitable for automotive environments.
Feature Summary
- Robust spindle motor control for reliable data access
- Extended operating temperature range suitable for automotive applications
Applications
- Spindle motor control systems
- Automotive electronics requiring reliable data access
- Motor driver circuits operating within specified voltage limits
Procurement Notes
Verify component authenticity through authorized channels due to potential counterfeit risks. Confirm package integrity and marking accuracy upon receipt. Check for obsolescence status as the product may be discontinued. Ensure compatibility with existing system voltage and thermal requirements before integration.
Selection Notes
Select this component when robust spindle motor control is required for data access applications. Consider its 4.4V to 45V supply range and 1A output capability. Verify suitability for automotive environments given the -40°C to 125°C operating range. Evaluate the 48-HSSOP package constraints against PCB layout requirements.
Part Context
The LA6502 belongs to onsemi's motor drivers and controllers family. It is specifically engineered for spindle motor applications where reliability is critical. The MPB-E suffix denotes the specific package and tape/reel configuration. This part serves niche industrial and automotive markets requiring precise motor management.
Replacement Considerations
The product listing indicates this item is no longer manufactured. Users should consult official distributors for alternative solutions or legacy support options. Verify functional equivalence if substituting with other motor driver ICs from the same manufacturer.
