LABSKB

Overview

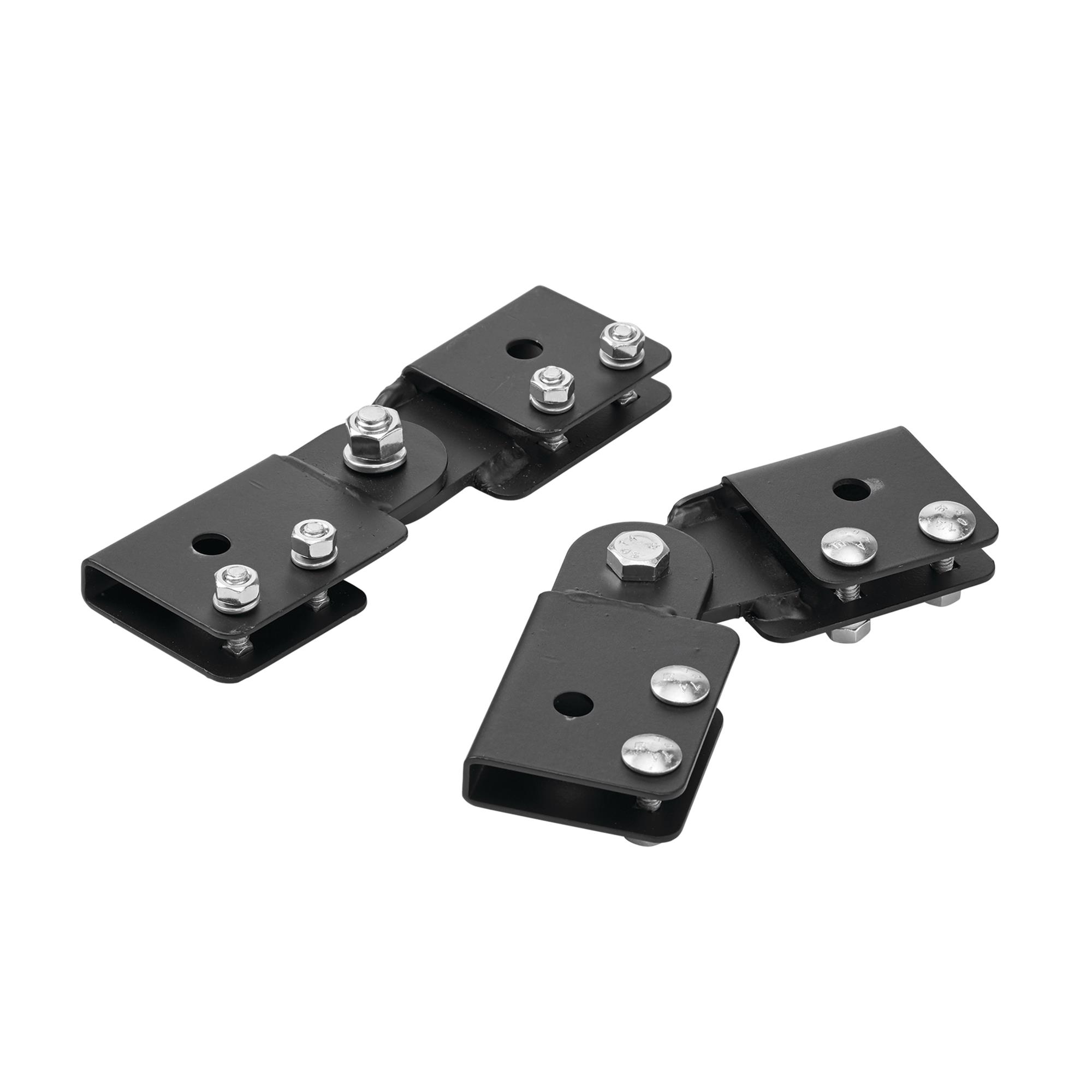

The Hoffman LABSKB is an adjustable butt-splice kit designed for use with DCR ladder rack systems. Constructed from black steel, this component facilitates vertical changes in cable runway direction. It allows for angle adjustments ranging from 0 to 90 degrees, enabling the connection of one ladder rack section to another. The product holds UL and cULus approvals for both Canada and the US, ensuring compliance with relevant safety standards for electrical enclosure accessories.

Feature Summary

• Provides vertical direction change for cable runways
• Adjustable angle capability from 0 to 90 degrees
• Connects adjacent ladder rack sections
• Constructed from durable black steel material

Applications

• DCR Ladder Rack System installations
• Vertical cable runway routing
• Electrical enclosure accessory integration

Procurement Notes

Verify that the specific order matches the nVent Hoffman part number LABSKB. Confirm the material specification is black steel and check for required UL/cULus certification marks on packaging or documentation. Ensure compatibility with existing DCR ladder rack systems before procurement. Request official datasheets to validate technical specifications against project requirements.

Selection Notes

Select this kit when a vertical transition in cable runway direction is required within a DCR ladder rack system. The adjustable design accommodates various installation angles between 0 and 90 degrees. Choose this component for its steel construction and approved status for use in North American markets. Ensure the application involves connecting separate ladder rack sections rather than horizontal runs.

Part Context

This component belongs to the Hoffman Enclosures product line, specifically categorized under ladder rack fittings. It serves as a structural connector for cable management systems. The manufacturer, now part of nVent, produces these accessories for industrial and commercial electrical infrastructure. The LABSKB model is distinct from other splice kits by its specific adjustability range and intended use with DCR series racks.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify compatibility with existing DCR ladder rack sections before attempting to use alternative components. Consult official nVent Hoffman documentation for any discontinued or superseded part information.
