LAT-0+

Overview

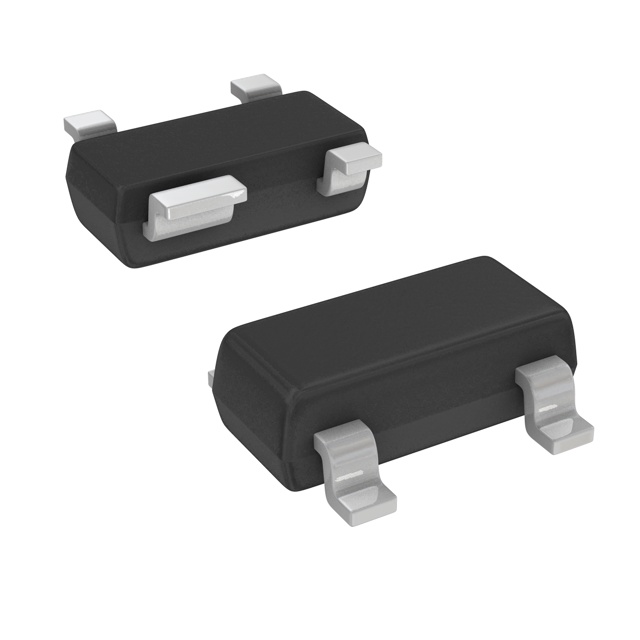

The LAT-0+ is a surface-mount fixed RF attenuator manufactured by Mini-Circuits, designed for broadband applications from DC to 2.5 GHz. It provides a nominal attenuation of 0 dB with a 50 Ohm impedance and handles up to 500 mW of power. The component utilizes a TO-253-4 (SOT-143-4) package, ensuring convenient integration into compact circuit designs while maintaining excellent VSWR performance across its specified frequency range.

Feature Summary

• Wideband operation covering DC to 2.5 GHz
• Excellent Voltage Standing Wave Ratio (VSWR)
• Surface-mount construction for automated assembly

Applications

• RF signal path conditioning in communication systems
• Impedance matching networks requiring minimal insertion loss
• Broadband test and measurement equipment setups

Procurement Notes

Verify the specific datasheet version when ordering, as Mini-Circuits may update documentation without changing the part number. Confirm that the TO-253-4 footprint matches your PCB layout requirements. Ensure the 500 mW power rating aligns with your system's maximum signal levels to prevent component damage during operation.

Selection Notes

Select this component when a near-zero attenuation value is required within a wide bandwidth up to 2.5 GHz. The 50 Ohm impedance makes it suitable for standard RF systems. Consider the SMT package for space-constrained designs where through-hole alternatives are too large. Validate thermal management capabilities if operating near the 500 mW limit.

Part Context

The LAT series represents Mini-Circuits' line of surface-mount fixed attenuators. The LAT-0+ specifically denotes a 0 dB variant, effectively acting as a low-loss transmission element rather than a signal reducer. This series is part of a broader portfolio offering various attenuation values from 0 dB to higher dB ratings, all sharing similar broadband characteristics and packaging standards.

Replacement Considerations

Direct substitutes include other Mini-Circuits LAT models with identical footprints but different attenuation values, such as LAT-1+, LAT-3+, or LAT-6+. Cross-brand replacements require careful verification of the TO-253-4 package dimensions, DC-2.5 GHz frequency response, and 50 Ohm impedance compatibility to ensure electrical equivalence.
