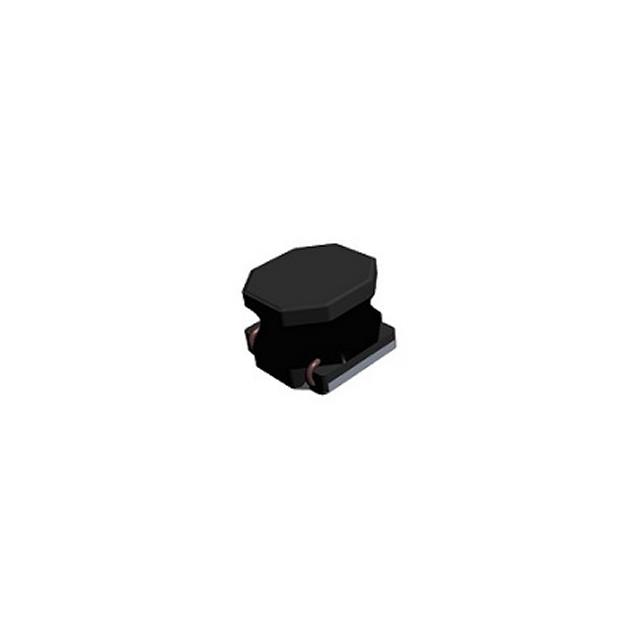

LAXHG6060YEL220MMR is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is INDUCTOR WIRE WOUND 22UH SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for LAXHG6060YEL220MMR
- Description：INDUCTOR WIRE WOUND 22UH SMD
- Series：LAXH
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：Ferrite
- Inductance：22 µH
- Tolerance：±20%
- Current Rating (Amps)：1.8 A
- Current - Saturation (Isat)：2.5A
- Shielding：Unshielded
- DC Resistance (DCR)：132mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：9MHz
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 150°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：2424 (6060 Metric)
- Supplier Device Package：2424
- Size / Dimension：0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max)：0.177" (4.50mm)
- Features：-
Fixed Inductors datasheet and documents for LAXHG6060YEL220MMR
Fixed Inductors Overview
The LAXHG6060YEL220MMR is a semi-shielded wirewound ferrite power inductor from the LAXH series, designed for automotive applications. It features an inductance of 22 µH with a tolerance of ±20%. The component supports a maximum DC current of 1.4 A and has a maximum DC resistance of 132 mΩ. It operates within a temperature range of -40°C to +150°C and meets AEC-Q200 qualification standards.
Fixed Inductors Feature Summary
- Semi-shielded construction reduces electromagnetic interference
- AEC-Q200 qualified for automotive reliability
- High-temperature operation up to 150°C
Fixed Inductors Applications
- Automotive electronic systems
- Power supply circuits
- DC-DC converters
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official Taiyo Yuden documentation to ensure accuracy. Confirm that the AEC-Q200 qualification and electrical parameters match the design requirements. Check for any obsolete part number aliases, such as NRT6045T220MMRR, during sourcing to avoid procurement errors.
Fixed Inductors Selection Notes
Select this component for automotive designs requiring high-temperature stability and compact SMD packaging. Ensure the 1.4 A current rating and 132 mΩ resistance meet the circuit's power loss and thermal management constraints. Verify compatibility with the 6060 metric footprint and semi-shielded magnetic field characteristics.
Fixed Inductors Part Context
This part belongs to the LAXH series of wirewound ferrite power inductors specifically engineered for automotive use. It utilizes a semi-shielded design to balance performance and size. The series is characterized by its robustness under harsh environmental conditions and compliance with strict automotive industry standards.
Fixed Inductors Replacement Considerations
The previous part number for this component is NRT6045T220MMRR. When substituting, verify that the legacy part shares identical electrical specifications and physical dimensions to ensure seamless integration without redesigning the PCB layout.
