LB E6SG-T1U2-35-Z

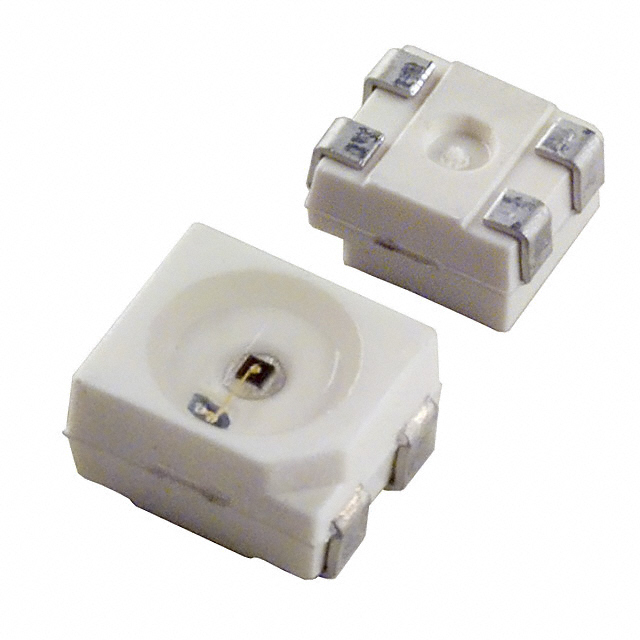

Description：LED BLUE CLEAR 4PLCC SMD
Series：Power TOPLED®
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)

SKU:ff0dd8eb4b72 Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LB E6SG-T1U2-35-Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED BLUE CLEAR 4PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LB E6SG-T1U2-35-Z

Description：LED BLUE CLEAR 4PLCC SMD
Series：Power TOPLED®
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：495mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：3.4V
Current - Test：30mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：470nm
Wavelength - Peak：464nm
Features：-
Package / Case：4-PLCC
Supplier Device Package：4-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LB E6SG-T1U2-35-Z

LB E6SG-T1U2-35-Z

LED Indication - Discrete Overview

The LB E6SG-T1U2-35-Z is a blue surface-mount LED from the Power TOPLED series by ams OSRAM. It features a PLCC-4 package with four pins and emits light at a main wavelength of 470nm. The device operates with a forward voltage of 3.4V and a maximum forward current of 50mA. It provides an LED luminous intensity of 495 mcd and a luminous flux of 1.43 lm. The lens has a circular shape, clear transparency, and a viewing angle of 120 degrees. Lens dimensions are 2.4 x 2.1 mm.

LED Indication - Discrete Feature Summary

High-intensity blue emission in a compact PLCC-4 surface-mount package
Wide 120-degree viewing angle for broad illumination coverage
Automotive-grade reliability with AEC-Q101 qualification

LED Indication - Discrete Applications

Automotive exterior lighting systems
Interior vehicle status indicators
General-purpose high-brightness indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'Z' against official datasheets to confirm packaging details and compliance certifications. Ensure compatibility with standard SMD reflow profiles. Check for moisture sensitivity level requirements during storage and handling. Confirm availability through authorized distributors as stock levels vary.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high brightness in a standard PLCC-4 footprint. Consider the 50mA maximum current rating for thermal management. The 470nm wavelength suits blue indicator needs. Verify that the 3.4V forward voltage aligns with the driving circuit design.

LED Indication - Discrete Part Context

This part belongs to the Power TOPLED family, designed for robust performance in demanding environments. It utilizes advanced semiconductor technology to deliver high luminous flux within a small form factor. The PLCC-4 package facilitates automated assembly processes.
