LB L29S-K1L2-35-1-10-R18-Z

$0.38

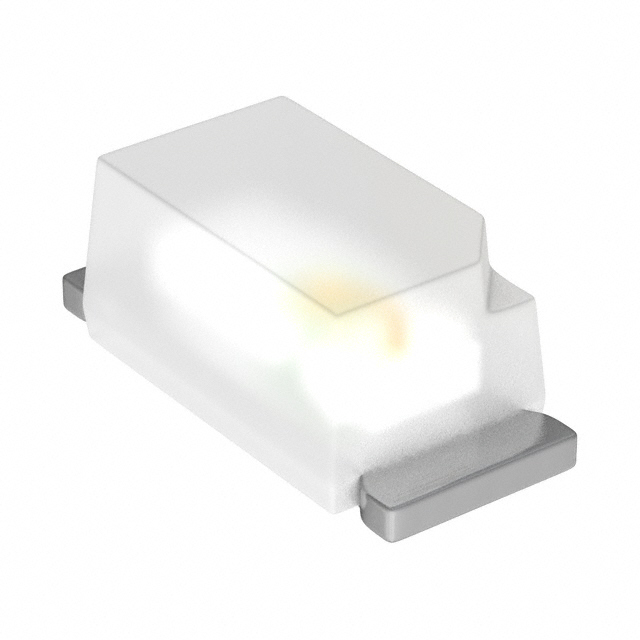

Description：LED BLUE DIFFUSED 0603 SMD
Series：SMARTLED® 0603
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)

SKU:f00a442ec2ed Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LB L29S-K1L2-35-1-10-R18-Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED BLUE DIFFUSED 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LB L29S-K1L2-35-1-10-R18-Z

Description：LED BLUE DIFFUSED 0603 SMD
Series：SMARTLED® 0603
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)
Color：Blue
Configuration：Standard
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：12.55mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.30mm x 0.80mm
Voltage - Forward (Vf) (Typ)：3.4V
Current - Test：10mA
Viewing Angle：155°, 135°
Mounting Type：Surface Mount
Wavelength - Dominant：470nm
Wavelength - Peak：465nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.70mm L x 0.80mm W
Height (Max)：0.65mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LB L29S-K1L2-35-1-10-R18-Z

LB L29S-K1L2-35-1-10-R18-Z

LED Indication - Discrete Overview

The LB L29S-K1L2-35-1-10-R18-Z is a single-color blue LED from the SMARTLED® 0603 series by ams OSRAM. It features a 470nm peak wavelength and operates with a typical forward voltage of 3.1V at a test current of 10mA. The component utilizes a rectangular lens with a flat top, housed in a 0603 (1608 metric) surface-mount package measuring 1.70mm x 0.80mm x 0.65mm. It delivers a luminous intensity of 39.2mcd and offers wide viewing angles of 155° and 135°. The device complies with RoHS standards and carries an MSL rating of 2.

LED Indication - Discrete Feature Summary

Compact 0603 surface-mount footprint for space-constrained designs
Wide viewing angles of 155° and 135° for broad illumination coverage
Rectangular lens with a flat top design for directional light output

LED Indication - Discrete Applications

Status indication in consumer electronics
Indicator lights in portable devices
Visual signaling in compact circuit boards

LED Indication - Discrete Procurement Notes

Verify component availability status directly with authorized distributors or the manufacturer, as this specific part number may be subject to discontinuation or lifecycle changes. Confirm moisture sensitivity level handling requirements during storage and assembly. Ensure compliance with relevant environmental regulations such as RoHS before final integration into production workflows.

LED Indication - Discrete Selection Notes

Select this component when a small form factor blue indicator is required. The 0603 package suits high-density PCB layouts. Consider the 3.1V forward voltage drop for power budget calculations. Verify that the 10mA test current aligns with system drive capabilities. Check if the rectangular lens shape meets optical distribution needs compared to round alternatives.

LED Indication - Discrete Part Context

This LED belongs to the SMARTLED® 0603 family, designed for general-purpose indication applications. It represents a standard solution within ams OSRAM's portfolio of single-color LEDs. The product line emphasizes reliability and consistent performance for mass-produced electronic devices requiring compact visual feedback components.
