LB Q39E-L2OO-35-1-5-R18

LED Indication - Discrete Overview

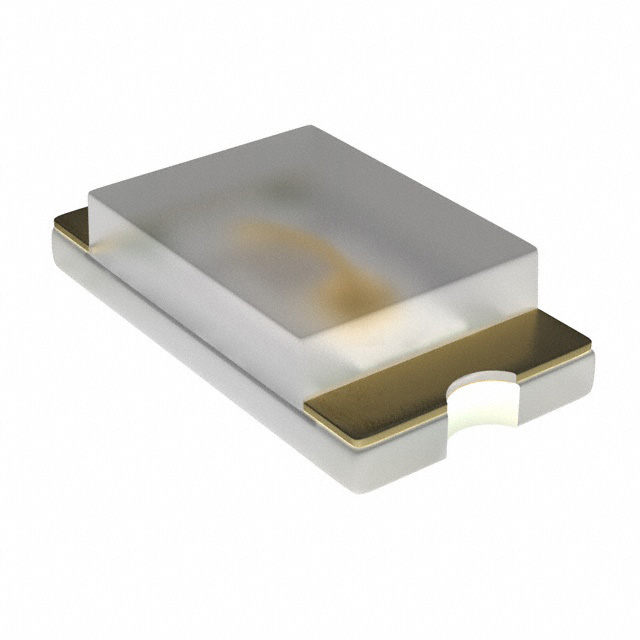

The LB Q39E-L2OO-35-1-5-R18 is a blue light-emitting diode from the CHIPLED 0603 series, manufactured by ams OSRAM USA INC. It features a diffused lens and operates at a peak wavelength of 472nm with a typical forward voltage of 2.85V. The component is designed for surface mount installation in a 0603 (1608 metric) package measuring 1.60mm x 0.80mm x 0.40mm. It delivers an intensity of 29.5mcd when tested at 5mA. The device supports a working temperature range of -40°C to 85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Diffused blue LED emission optimized for visual indication
• Standard SMD configuration within the 0603 footprint
• Compliant with environmental regulations including RoHS3

LED Indication - Discrete Applications

• Discrete indicator lighting
• Electronic status signaling
• Panel illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's current naming conventions to ensure accurate part identification. Confirm that the requested variant matches the required optical and electrical specifications. Check for any recent Product Change Notifications or End-of-Life announcements that may affect availability or long-term supply continuity.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard blue indicator in a compact surface-mount form factor. Ensure the design accommodates the 0603 package dimensions and thermal requirements. Verify that the 29.5mcd luminous intensity meets the visibility needs of the target application under expected operating conditions.

LED Indication - Discrete Part Context

This part belongs to the ams OSRAM CHIPLED 0603 series, which provides a range of single-color LEDs in a standardized small outline package. The series is widely used in consumer electronics and industrial equipment where space-constrained indicator solutions are required. The LB Q39E variant specifically offers blue emission characteristics suitable for general-purpose signaling.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
