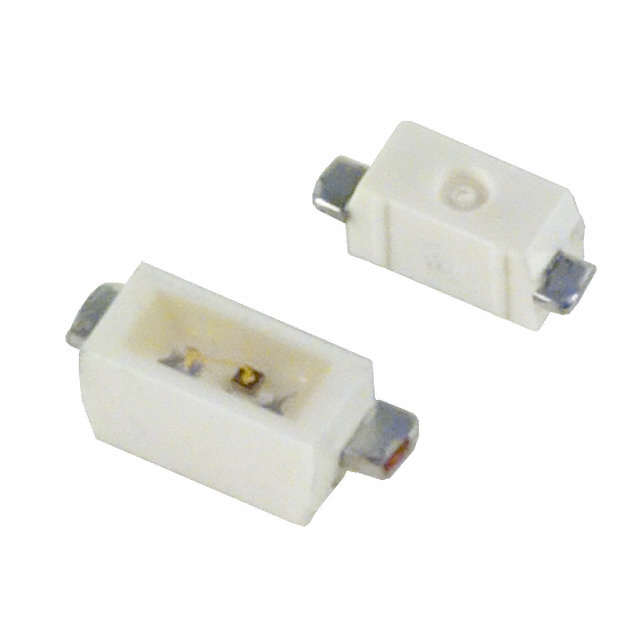

LB Y87C-P1Q2-35-Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED BLUE CLEAR SMD R/A. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for LB Y87C-P1Q2-35-Z
- Description：LED BLUE CLEAR SMD R/A
- Series：Micro SIDELED®
- Mfr：ams-OSRAM USA INC.
- Package：Tape & Reel (TR)
- Color：Blue
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：78.5mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.70mm x 0.70mm
- Voltage - Forward (Vf) (Typ)：3.6V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：470nm
- Wavelength - Peak：465nm
- Features：-
- Package / Case：2-SMD, Flat Leads
- Supplier Device Package：SMD
- Size / Dimension：2.20mm L x 1.20mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for LB Y87C-P1Q2-35-Z
LED Indication - Discrete Overview
The LB Y87C-P1Q2-35-Z is a green surface-mount LED from the Micro SIDELED series by ams OSRAM. It features a 570nm peak wavelength and a 120-degree viewing angle. The component operates with a forward voltage of 2V and a maximum forward current of 30mA. Key optical metrics include an LED brightness of 112 mcd and a luminous flux of 240 mlm. It utilizes a two-pin configuration for surface installation.
LED Indication - Discrete Feature Summary
- Green light emission at 570nm wavelength
- Wide 120-degree viewing angle
- Micro SIDELED surface-mount package
LED Indication - Discrete Applications
- Indicator lighting
- Status signaling
- General illumination
LED Indication - Discrete Procurement Notes
Verify the specific ordering suffix against official datasheets to confirm exact binning and packaging specifications. Ensure compliance with RoHS standards as indicated for lead-free products. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and correct component identification before procurement.
LED Indication - Discrete Selection Notes
Select this component based on its specific green color output and wide beam angle requirements. Evaluate the 2V forward voltage and 30mA current limits against circuit design constraints. Consider the surface-mount form factor for PCB integration needs. Confirm that the 112 mcd brightness meets visibility requirements for the intended application environment.
LED Indication - Discrete Part Context
This device belongs to the Micro SIDELED family, designed for compact electronic applications. It represents ams OSRAM's surface-mount LED technology optimized for space-constrained designs. The product line emphasizes reliability and consistent optical performance in small form factors suitable for modern electronics.
LED Indication - Discrete Replacement Considerations
Consult official substitution guides for compatible alternatives within the Micro SIDELED series. Verify electrical and mechanical compatibility before replacing the component. Ensure any substitute matches the required wavelength and package dimensions.
