LB4X2X8F

Chip Ferrite Bead Overview

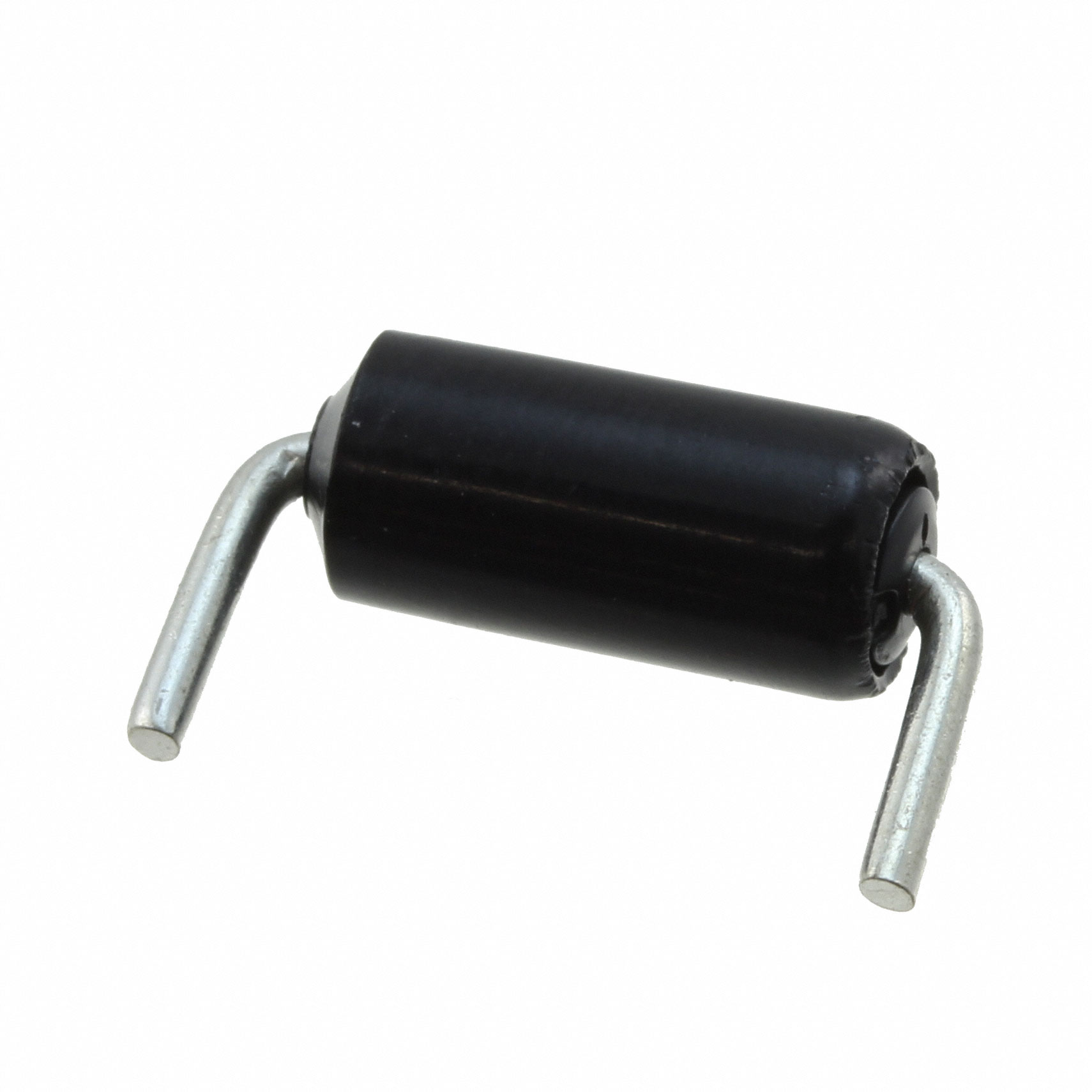

The LB4X2X8F is an axial ferrite bead manufactured by Toshiba Semiconductor and Storage. It features an amorphous core design intended for noise suppression applications. The component is housed in an axial cylinder package with a radial bend configuration. It is rated for a typical current of 8A. This part belongs to the AMOBEAD series, utilizing amorphous material for its magnetic properties.

Chip Ferrite Bead Feature Summary

• Utilizes an amorphous core structure for effective high-frequency noise attenuation
• Designed in an axial cylinder form factor with a radial bend for PCB mounting flexibility
• Rated for typical continuous current handling of 8A

Chip Ferrite Bead Applications

• General-purpose noise suppression circuits
• Power line filtering for electronic equipment
• Signal integrity improvement in digital systems

Chip Ferrite Bead Procurement Notes

Verify the specific datasheet version as this product may be discontinued or subject to change. Confirm physical dimensions and electrical characteristics against the official Toshiba documentation before integration. Ensure compatibility with existing thermal and mechanical constraints in the target assembly.

Chip Ferrite Bead Selection Notes

Select this component when an axial ferrite bead with an 8A current rating is required. The radial bend design facilitates specific board layout requirements. Verify that the amorphous core characteristics meet the specific frequency range needs of the application.

Chip Ferrite Bead Part Context

This component is part of Toshiba's ferrite bead portfolio, specifically the AMOBEAD series. These components are designed to suppress electromagnetic interference (EMI) in electronic circuits. The axial format allows for through-hole mounting, providing robust mechanical stability compared to surface-mount alternatives.
