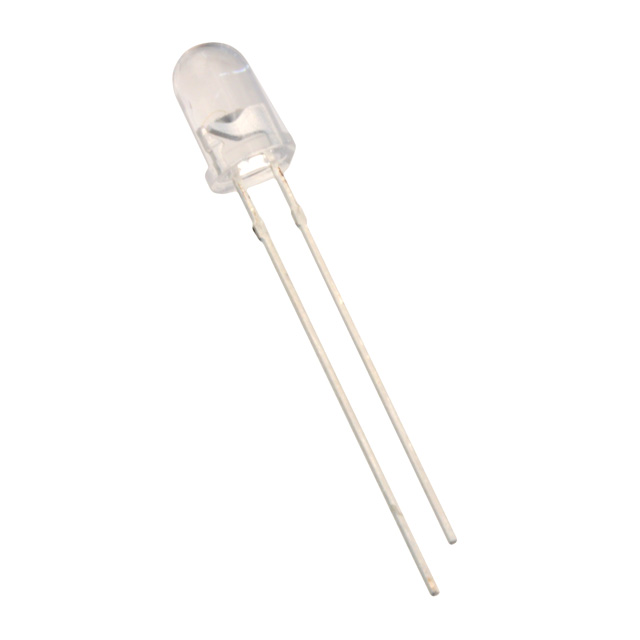

LB520-A

$0.18

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tape & Box (TB)

SKU:b4b15d275d85 Category: LED Indication - Discrete Brand: Seoul Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LB520-A is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Seoul Semiconductor Inc.. Its product description is LED BLUE CLEAR T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LB520-A

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tape & Box (TB)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：3500mcd
Lens Style：Round with Domed Top
Lens Size：5.00mm Dia
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：22°
Mounting Type：Through Hole
Wavelength - Dominant：470nm
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：-
Size / Dimension：-
Height (Max)：9.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LB520-A

LB520-A

LED Indication - Discrete Overview

The LB520-A is a blue light-emitting diode manufactured by Seoul Semiconductor Inc. It features a clear lens and utilizes through-hole mounting technology. The component emits light at a wavelength of 470nm, classifying it as a blue indicator LED. It operates with a forward voltage of 3.2V and has a maximum height of 9.90mm.

LED Indication - Discrete Feature Summary

Clear lens construction for consistent optical output
Through-hole radial lead configuration for standard PCB integration

LED Indication - Discrete Applications

General electronic equipment status indication
Panel indicator lighting
Discrete signal signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version provided by the supplier to confirm current RoHS compliance status and exact binning classifications. Ensure that the through-hole pin spacing matches the target printed circuit board layout before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a discrete blue visual indicator is required for panel-mounted applications. Consider the 3.2V forward voltage requirement for appropriate driver circuit design and verify mechanical clearance constraints against the 9.90mm maximum height specification.

LED Indication - Discrete Part Context

This part belongs to the discrete LED category within Seoul Semiconductor's optoelectronics portfolio. It serves as a standalone illumination source rather than an integrated display module or high-power lighting solution.
