LBF1616

Overview

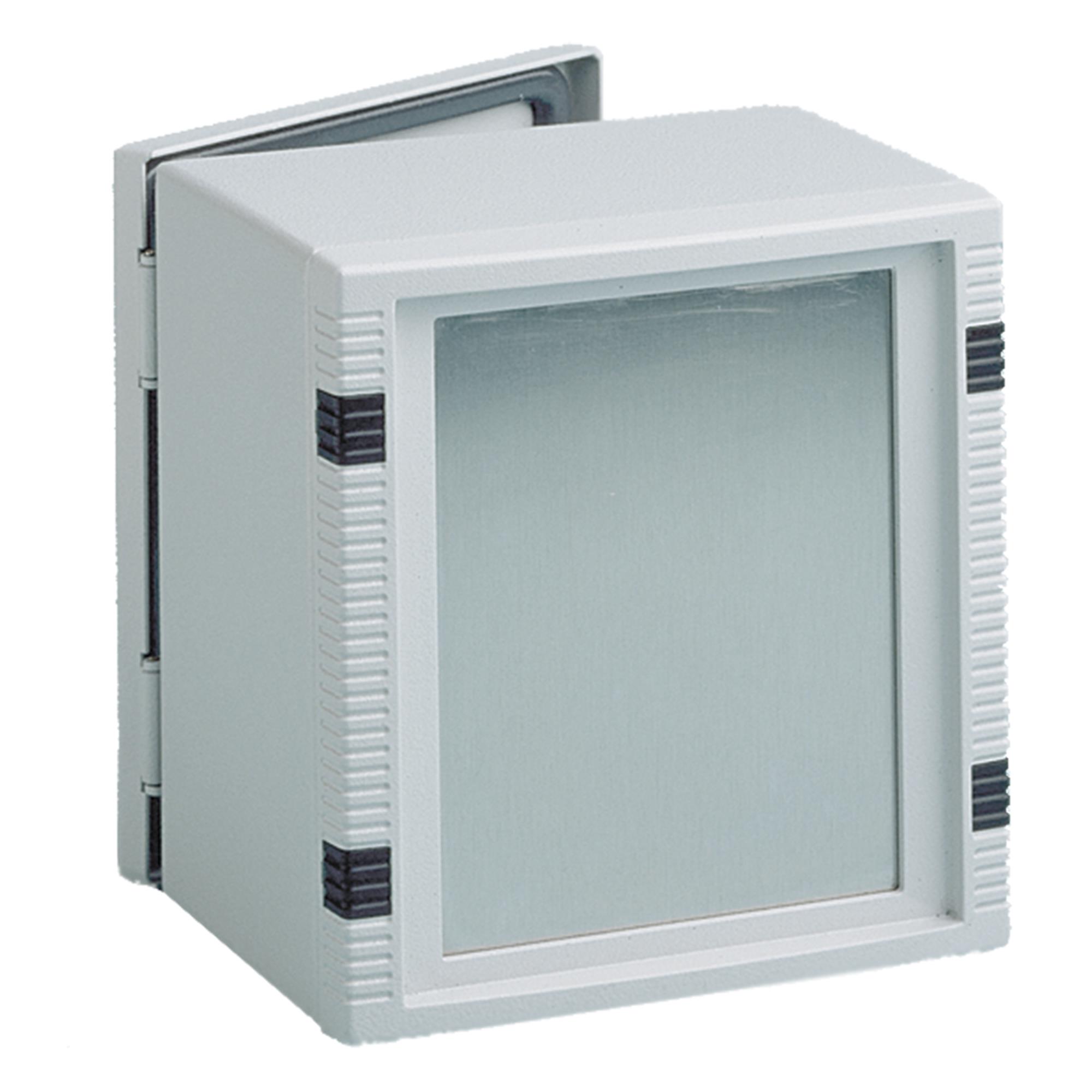

The LBF1616 is a fixed bezel manufactured by Hoffman Enclosures, Inc., designed for modular operator interface systems. It features a die-cast aluminum construction with a zinc-colored light gray polyester powder-coated finish. The unit includes screws and is engineered to fit enclosures with a 166 x 160 mm window opening. Its aesthetic frame accepts front plates with HMI cutouts, while furnished caps conceal mounting hardware.

Feature Summary

• Die-cast aluminum construction for durability
• Accepts front plates with HMI cutouts
• Conceals mounting screws via furnished frame caps

Applications

• Modular operator interface system integration
• HMI panel mounting in industrial control panels
• Enclosure faceplate finishing

Procurement Notes

Verify the specific enclosure model compatibility before purchase, as this bezel is designated for 166x160 mm windows. Confirm that the required mounting hardware is included or ordered separately if not part of the standard package. Ensure the zinc-colored finish aligns with existing panel aesthetics. Cross-reference the manufacturer's documentation for any updates regarding compatible enclosure series within the Inline product line.

Selection Notes

Select this component when a fixed, aesthetic solution is required for HMI installations. It is suitable for environments where screw visibility must be minimized. Consider the material properties of die-cast aluminum for structural integrity. Verify that the target enclosure supports the 166x160 mm window specification to ensure proper fitment without modification.

Part Context

This part belongs to the Hoffman Inline modular operator interface system series. It serves as a finishing accessory rather than a standalone enclosure. The design focuses on integrating human-machine interfaces into larger control systems. It complements other accessories in the Hoffman lineup for standardized panel builds.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
